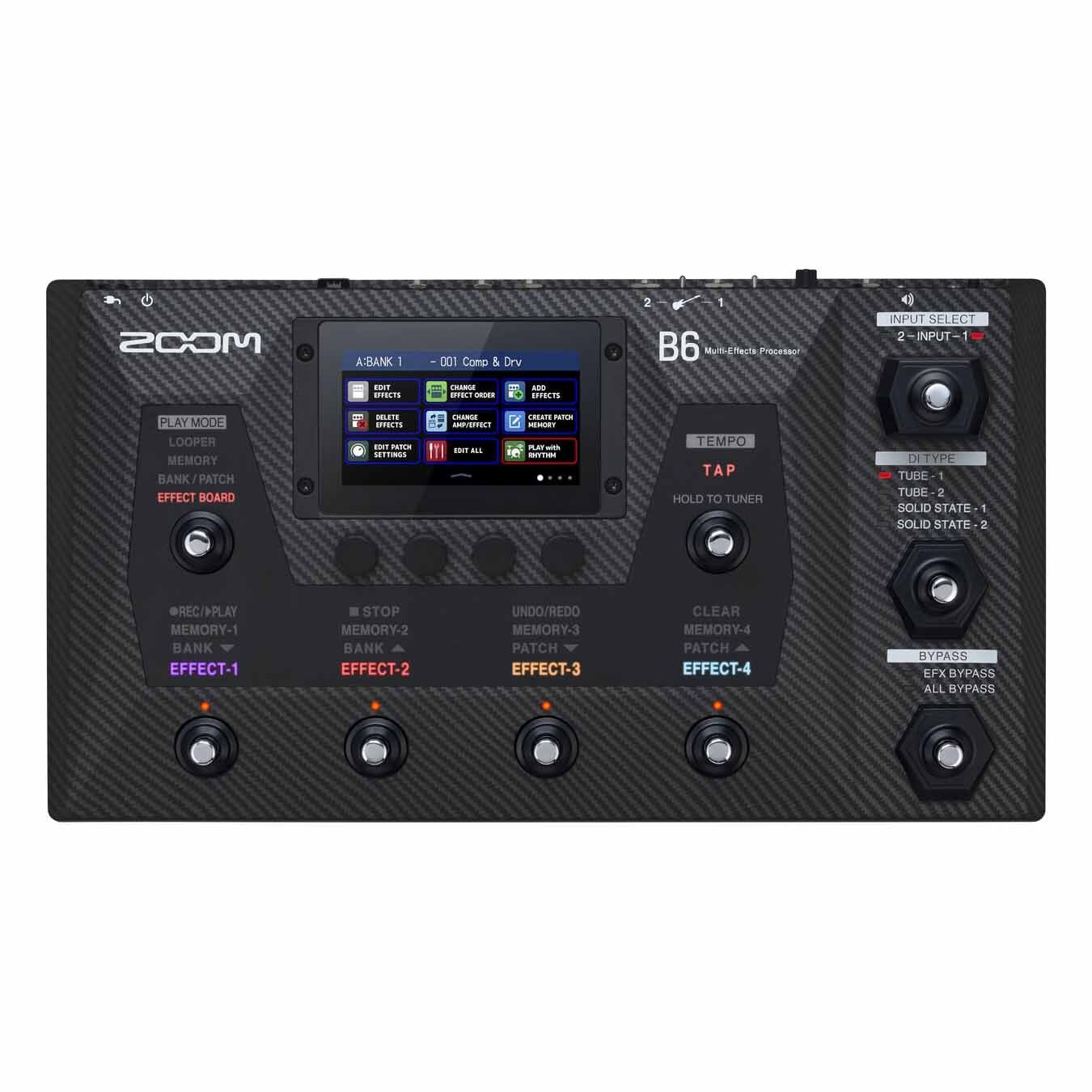

Zoom B6 Bass Multi Effects Processor

$799.00 inc GST

Brand: Zoom

SKU: B6
UPC: 4515260023691

The Zoom B6 Bass Multi Effects Processor is a powerhouse multi effects unit for Bass. Choose from a large variety of amp and effects models to get any sound you want. Easily customise your tone with the LCD touch screen.

AVAILABLE ONLINE

PAY IN FULL  or  PIPERS PAY-AFTER
4 Interest Free Payments of $199.75
Category: Tags:

Description

Zoom B6 Bass Multi Effects Processor

The Zoom B6 Bass Multi Effects Processor is a powerhouse multi effects unit for Bass. Choose from a large variety of amp and effects models to get any sound you want. Easily customise your tone with the LCD touch screen.

Features:

  • 4 DI models: 2 tube and 2 solid state models
  • Integrated A/B switcher for seamless instrument switching
  • Ultimate Zoom FX processor technology with amp modeling
  • Integrated pedal board with 9 stomp switches
  • IR load function for speaker cabinet simulation
  • 4.3˝ color LCD touch-screen interface
  • Chain up to 6 effects (including amp emulation)
  • Two variable-impedance inputs for electric and acoustic bass
  • New Play Mode Footswitch provides instant access to different play modes
  • Easy-to-see backlit panel with color-coded stomp effects
  • Built-in USB audio interface (2-in / 2-out)
  • Rhythm patterns and looper
  • Compatible with Zoom Guitar Lab


Super-Fat Bottom End

The new analog circuit, combined with the DI section vastly improves the low-frequencies of your instrument.

Super-Fine Top End

With an 88.2 kHz effects processor, double the rate of others, the B6 has your high end covered.

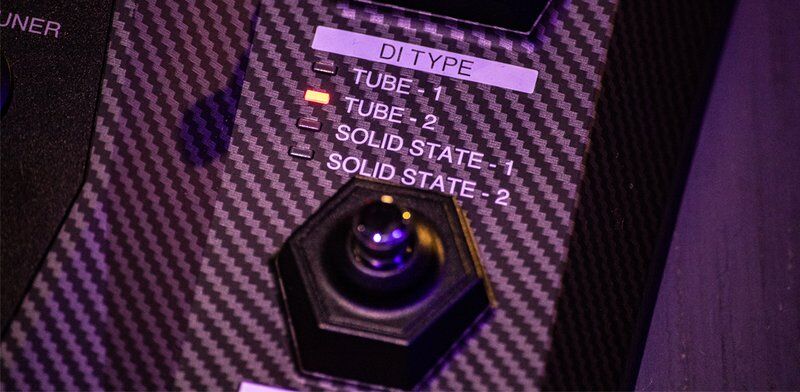

Four Iconic DI Models

Choose from four iconic DI boxes to give you a wide variety of tonal options.



zoom b6 di models

Tube 1 Vacuum tube DI character with rich harmonics and thick low frequencies.

Tube 2 Vacuum tube DI character with a clear attack and tight low frequencies.

Solid State 1 Delivers moderate compression and sharp tones for electric bass, while protecting against the loss of low frequencies when playing an upright bass with piezo pick-ups.

Solid State 2 Solid state DI character with a clear tone and little distortion.


Built For Your Significant Other (Bass)

Separate inputs allow you to A/B switch from electric bass to synth or acoustic bass, and back again.

Both inputs let you change the impedance from 1M to 10M ohms, giving you a cleaner tone for upright basses equipped with piezo pickups.

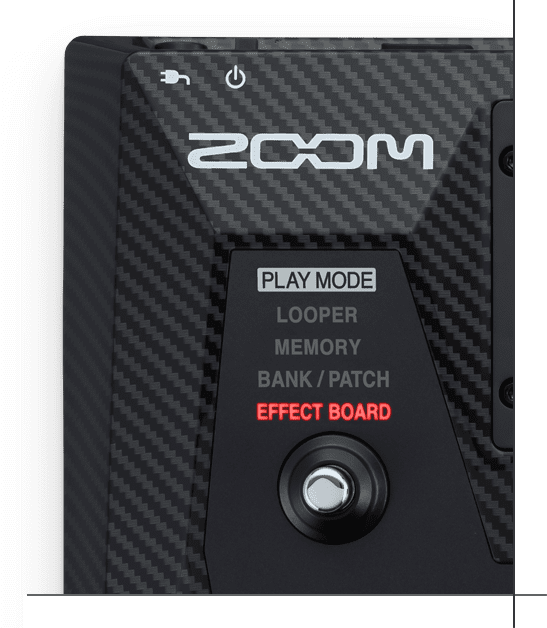

Play Modes

The four Play Modes on the B6 will change the touchscreen and footswitch layout to give you quick access to the controls you need.

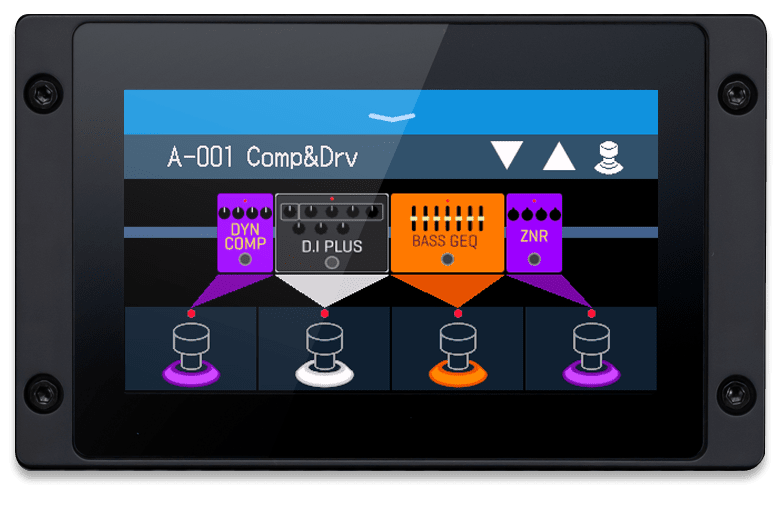

zoom b6 play modeEffect Board

This mode provides a visual representation of your pedal chain. By clicking the assigned foot switch, you can turn on or off an effect in your patch.

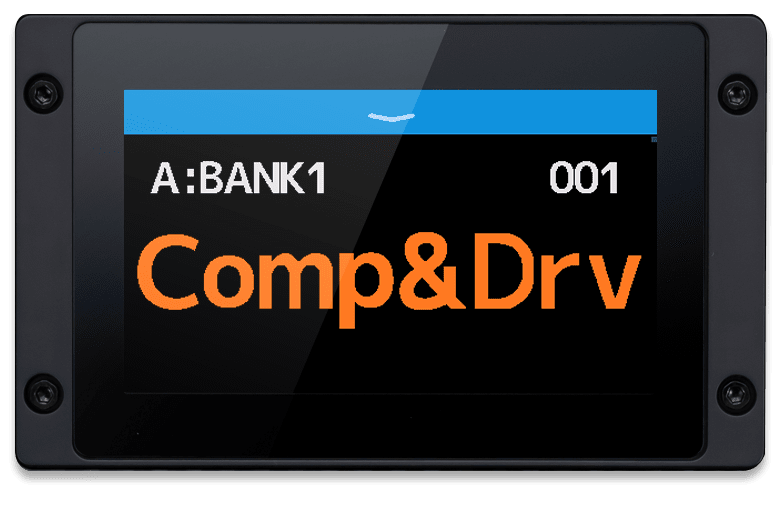

playModes_effect_1.pngBank/Patch

This mode lets you scroll up and down through your Banks and Patches by clicking the corresponding foot switch.

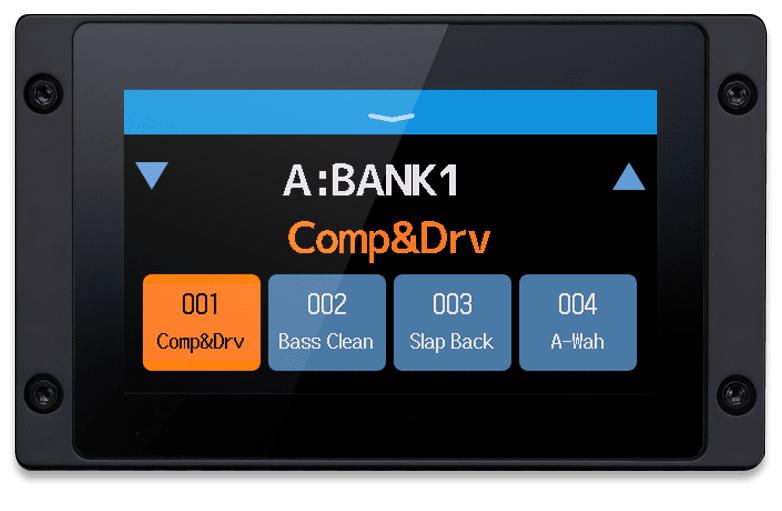

playModes_bankPatch_1.pngMemory

Ideal for organizing your patches for performances, the Memory Mode allows the foot switches to activate one of the 4 patches in each bank.

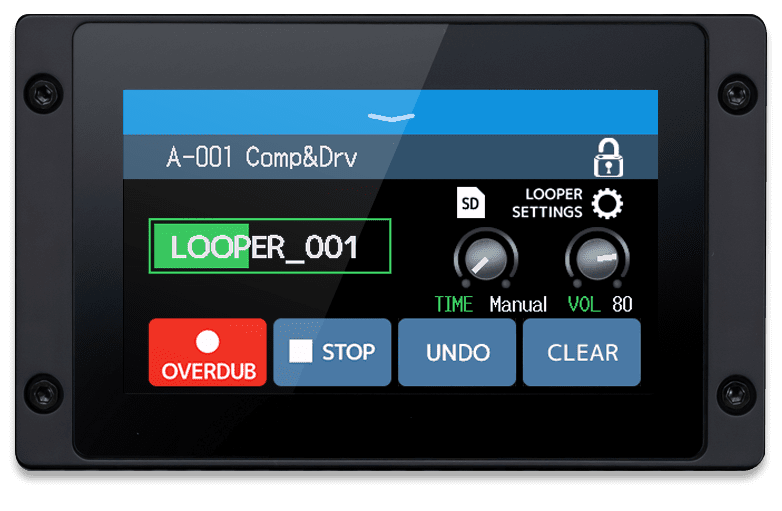

playModes_memory_1.pngLooper

Use the Looper to add layers to your sound.



Loop, Record, Repeat

Create loops and recordings up to two hours long, saved directly to an SD/SDXC card for instant access and recall.
*45-second looper without SD card


Back Beat

Select from the B6’s 68 rhythm patterns in a range of styles, tempos and time signatures.

Shipping Dimensions

Weight 3.5 kg
Dimensions 580 × 350 × 120 mm

MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS: 6
USER PATCHES: 240
SAMPLING FREQUENCY: 88.2KHz
A/D CONVERSION: 24-bit 128x oversampling
D/A CONVERSION: 24-bit 128x oversampling
SIGNAL PROCESSING: 32-bit
FREQUENCY CHARACTERISTICS: 20 Hz ~ 40 kHz +0.5 dB –0.5dB(10 kΩ load)
DISPLAY: 4.3″ TFT color LCD (480 x 272 pixels)

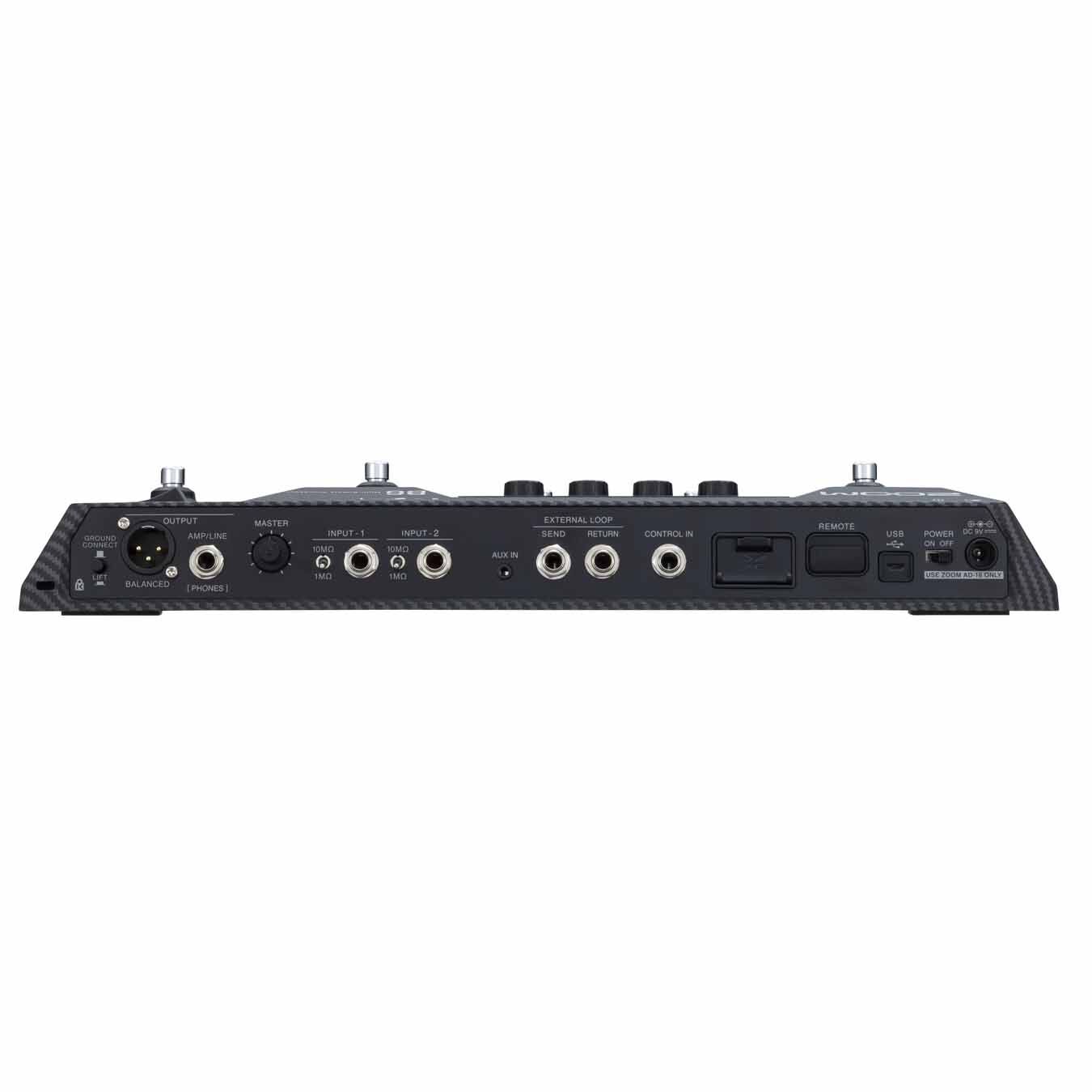

INPUTS

INPUTS 1/2: Standard mono phone jack
  Rated input level: -20 dBu
  Input impedance (line):1 / 10 MΩ(Select by Switch)
RETURN: Standard mono phone jack
  Rated input level: -20 dBu
  Input impedance (line): 1 MΩ
AUX IN: Stereo mini jack
  Rated input level: -10 dBu
  Input impedance (line): 10 kΩ

OUTPUTS

AMP OUT/PHONES Standard mono phone jack
  Maximum output level (line): +11.4 dBu (when output impedance 10 kΩ or higher)
  Headphones 24 mW + 24 mW (at 32 Ω load)
OUTPUT XLR jack
  Impedance:  100 Ω (HOT-GND, COLD-GND), 200 Ω (HOT-COLD)
  GND LIFT (Select by switch)
SEND Standard stereo phone jack
  Maximum output level (line): +11.4 dBu (when output impedance 10 kΩ or higher)

NOISE FLOOR (RESIDUAL NOISE)

AMP OUT/PHONES -96.0 dBu
OUTPUT -100.0 dBu
SEND -99.0 dBu
CONTROL INPUT FP02M input
POWER AC adapter ( 9v DC 500mA, center negative) (Zoom AD-16)
USB Port: USB 2.0 Micro-B/Supported cable type: Micro-B
  Guitar Lab: USB 1.1 Full Speed
  Audio Interface: USB 2.0 Full Speed, 44.1 kHz(32-bit)/88.2kHz(16-bit), 2 in, 2 out
  – Use a USB cable that supports data transfer. USB bus power is not supported

SD CARD

STANDARDS Cards that support SD/SDXC/SDHC specifications (class 10 or higher)
LOOPER 44.1 kHz/ 16-bit stereo WAV
IR 44.1 – 192kHz, 16/24/32-bit WAV



REMOTE ZOOM BTA-1 or other dedicated wireless adapter
EXTERNAL DIMENSIONS 228 mm (D) x 418 mm (W) x 65 mm (H)
WEIGHT 1.89 kg
  Note: 0 dBu = 0.775 V


Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Shipping Dimensions

Weight 3.5 kg
Dimensions 580 × 350 × 120 mm
