Mystic Edge Valvenergy Valve Distortion Pedal

$299.00 inc GST

Brand: Vox

SKU: VE-ME
UPC: 4959112198357

The Mystic Edge pedal delivers the sound of the VOX AC30. Equipped with a Nutube, providing the response and harmonic distortion of a tube amp. This pedal features buffered bypass, 3 x switchable Connection Modes (STANDARD, PREAMP & CAB-SIM), and all-analogue circuits with the 9V power supply voltage boosted to 15V internally giving greater volume and headroom.

2 AVAILABLE IN STORE

PAY IN FULL  or  PIPERS PAY-AFTER
4 Interest Free Payments of $74.75

Description

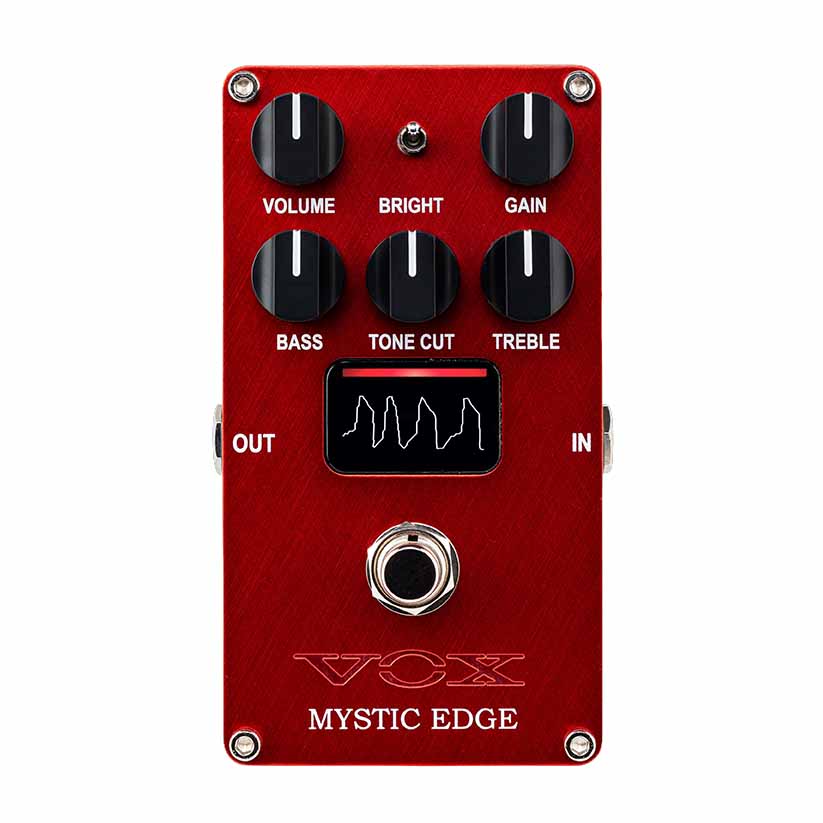

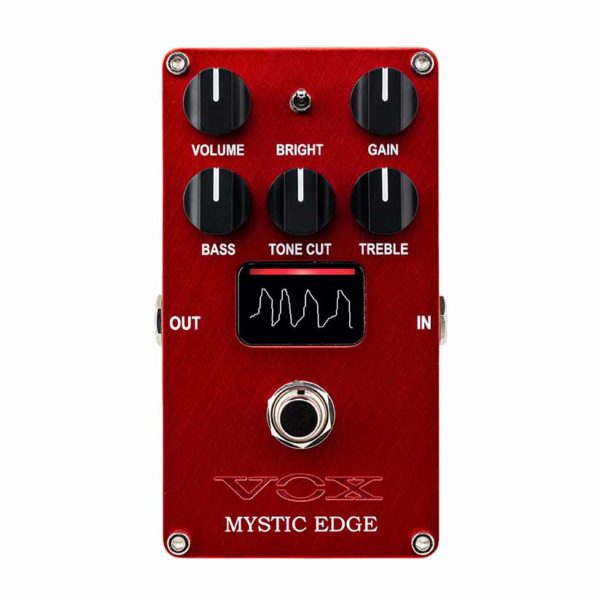

Vox Mystic Edge | Valvenergy Valve Distortion Pedal

The Valvenergy Mystic Edge valve distortion pedal offers the chime and midrange of the VOX AC30 in a compact pedal format, powered by Nutube for warm and responsive amp-like tones.

Inspired by the VOX AC30’s chime and midrange, the Mystic Edge goes beyond the amp-in-a-box category to offer a truly flexible valve distortion pedal. The all-analog signal path and Nutube allow for genuine overdrive and distortion tones with the feel of a real tube amp, while internally boosted voltage gives greater headroom and dynamics. Plus, the OLED display shows an oscilloscope while the pedal is active or bypassed, allowing you to understand exactly how your signal is affected.

Three output modes allow you to use this as a standard pedal, a line-level preamp, and a direct amp-sim using the built-in analog cabinet simulator. Use STANDARD mode with your normal guitar rig to totally transform your amp, or use PREAMP or CAB-SIM mode while recording directly into your audio interface. In each mode, the all-analog design and active EQ allow you to perfectly dial in the sound you need in any situation.

The Channel Link feature allows you to chain two or more Valvenergy pedals together, through the Link jack of each pedal. Using a with a standard 1/8” stereo cable will link 2 pedals, and using a stereo 1/8” splitter will link 3 or 4 pedals. This allows you to turn one pedal on while bypassing the others, as if you were switching between channels of a guitar amp.

These pedals are equipped with a high-contrast OLED display showing an oscilloscope, a visual indication of how the waveform is affected by the knob settings. This display allows shows which mode you are currently using.

Features:

  • Valve distortion pedal with all-analog signal path
  • Iconic sound of the VOX AC30
  • Powered by Nutube
  • Three output modes for use as a pedal or preamp
  • Selectable analog cabinet simulator
  • OLED display with oscilloscope
  • Active EQ to shape your signal



What is Nutube?

Nutube is a new vacuum tube that was developed by KORG Corporation in conjunction with Noritake Itron Corporation as an application of vacuum fluorescent display technology. Like a conventional vacuum tube, a Nutube has an anode grid filament structure and operates as a complete triode tube. It provides the same rich overtones and responses that are distinctive of conventional vacuum tubes.

Shipping Dimensions

Weight 1 kg
Dimensions 7 × 15 × 9 mm

INPUTS/OUTPUTS

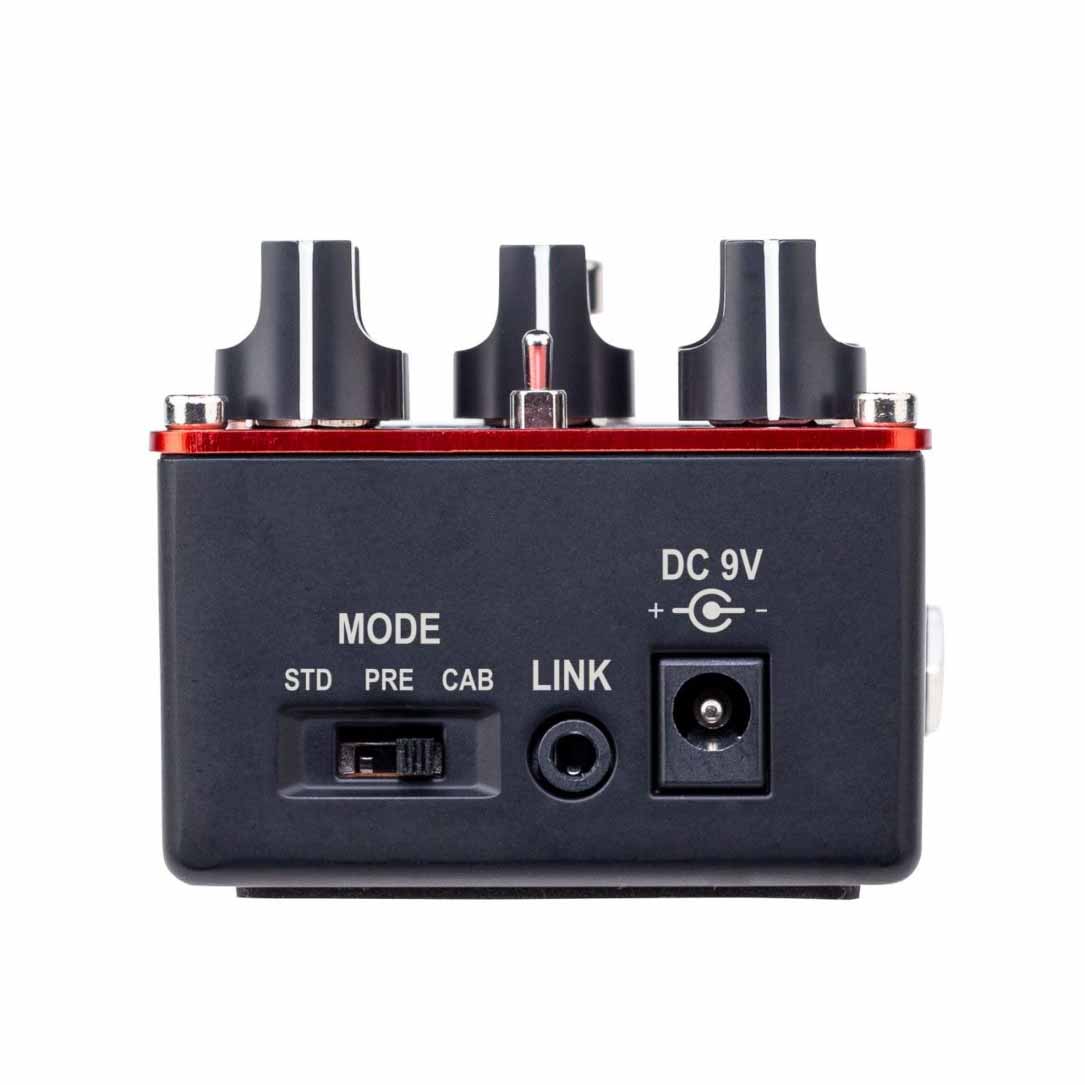

INPUT jack, OUTPUT jack, DC9V jack, LINK jack


CONTROLS

GAIN knob, VOLUME knob, TONE CUT knob, TREBLE knob, BASS, BRIGHT switch, MODE switch


POWER SUPPLY*

1 x 9V alkaline battery or 9V center negative AC adaptor

*: The use of an AC adaptor is recommended as the unit’s power consumption is relatively high. Should you prefer to use batteries, please use the alkaline type.


CURRENT CONSUMPTION

95 mA


BATTERY LIFE

Approx. 2 hours (When using the alkaline battery. This figure will vary depending on the actual conditions of use.)


DIMENSIONS (W X D X H)

72 mm x 120 mm x 55 mm (Including the knob and foot rubber)


WEIGHT

350 g (Including the battery)


INCLUDED ITEM

1 x 9V battery for checking operation


ACCESSORIES (SOLD SEPARATELY)

AC adaptor
