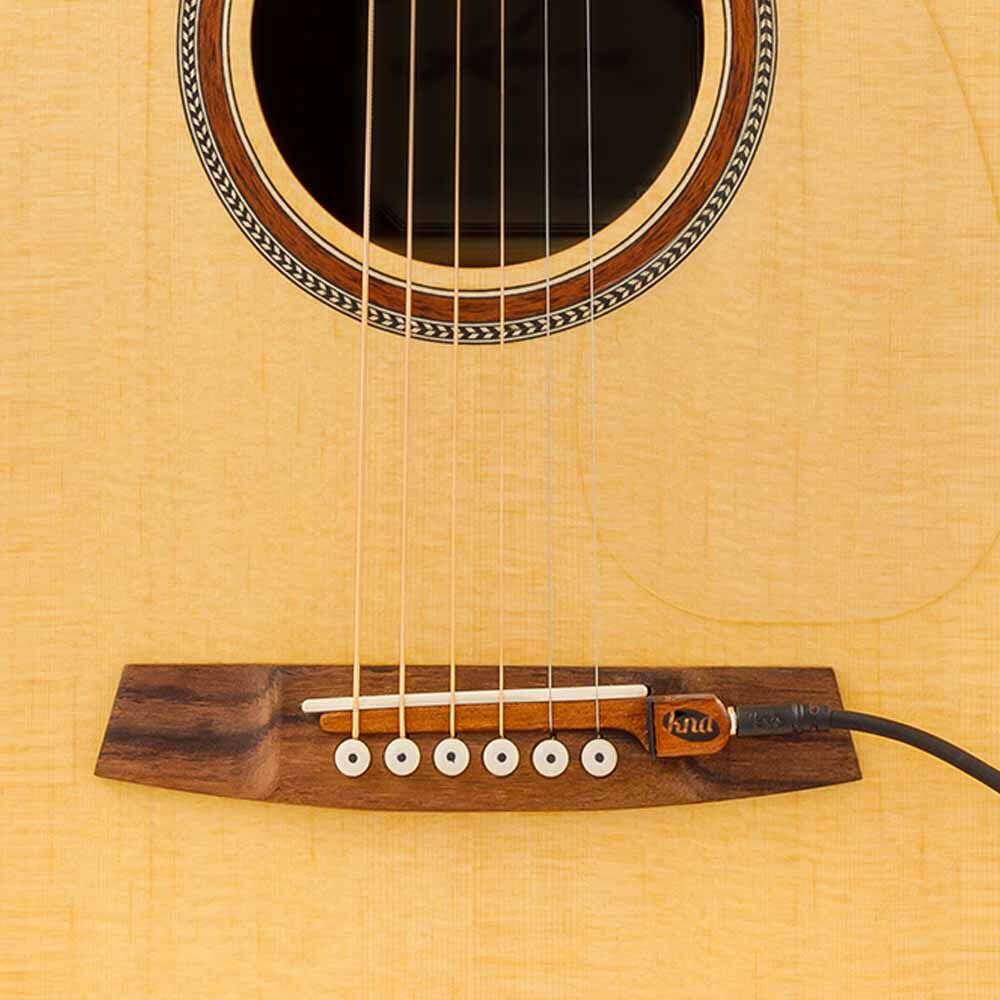

The KNA SG-1 is a passive piezo pickup designed for steel string acoustic guitars. This pickup sits in-between the bridge pins and saddles for a no modification install. The wooden casing makes sure it doesn’t look out of place on your guitar.
Features:

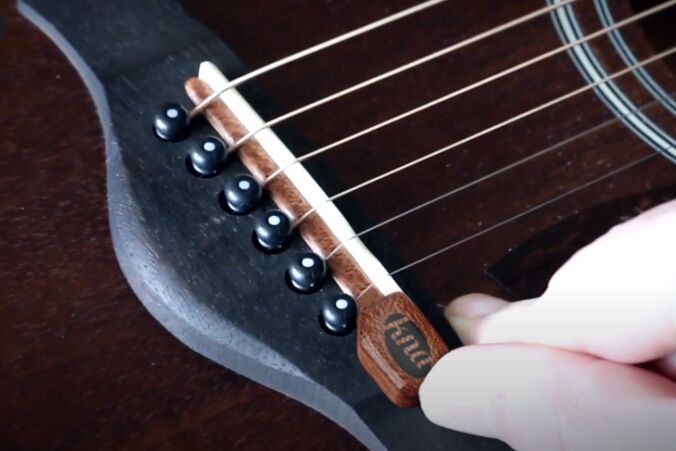

Installs with no modification
Held in place by the tension of tuned strings, SG-1 is an acoustic guitar bridge pickup that installs safely and securely between the saddle and pins.

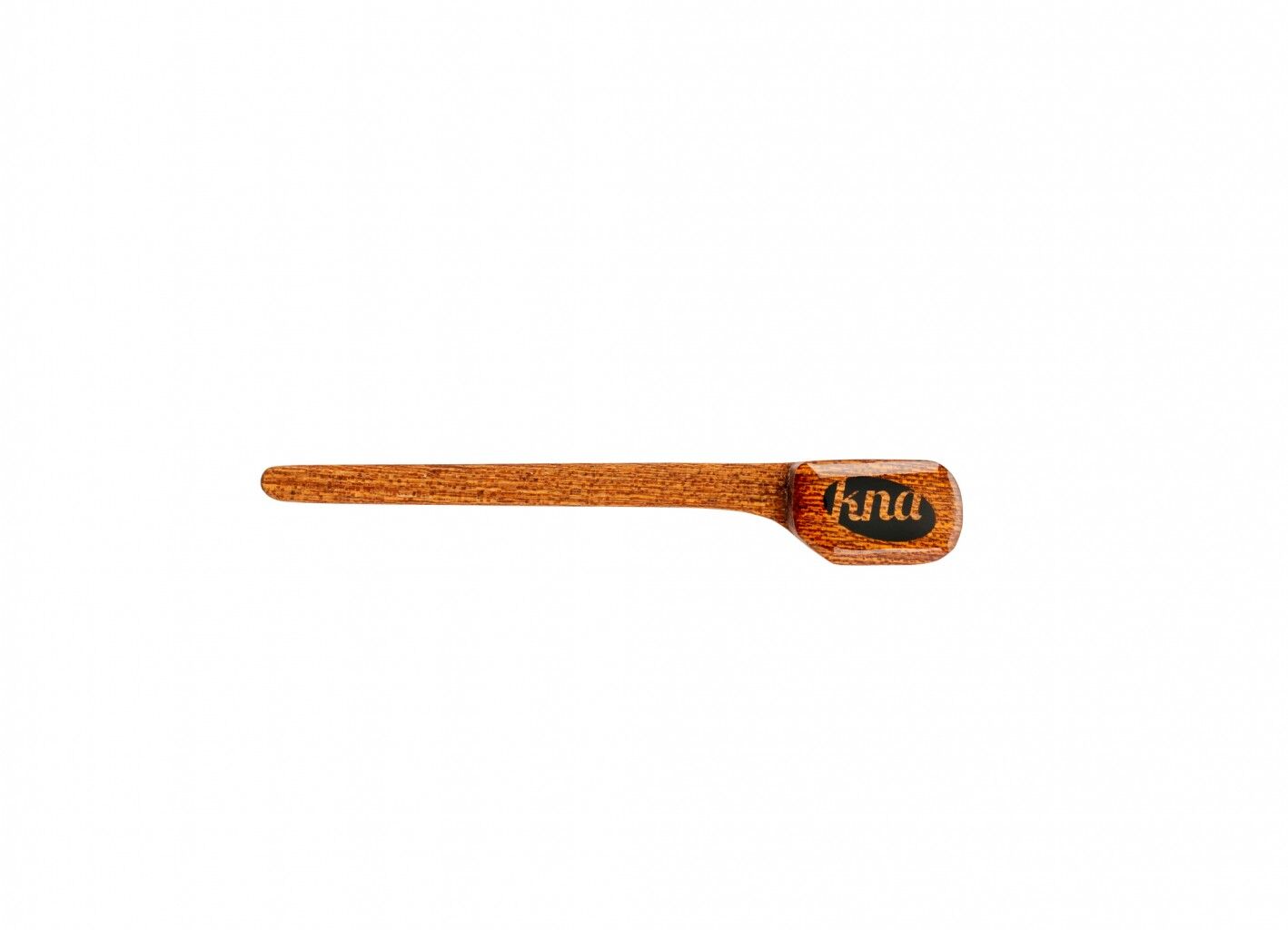

Wood Case
The piezo element is encased in elegant and stylish mahogany. The lightweight assembly offers maximum tonal sensitivity.

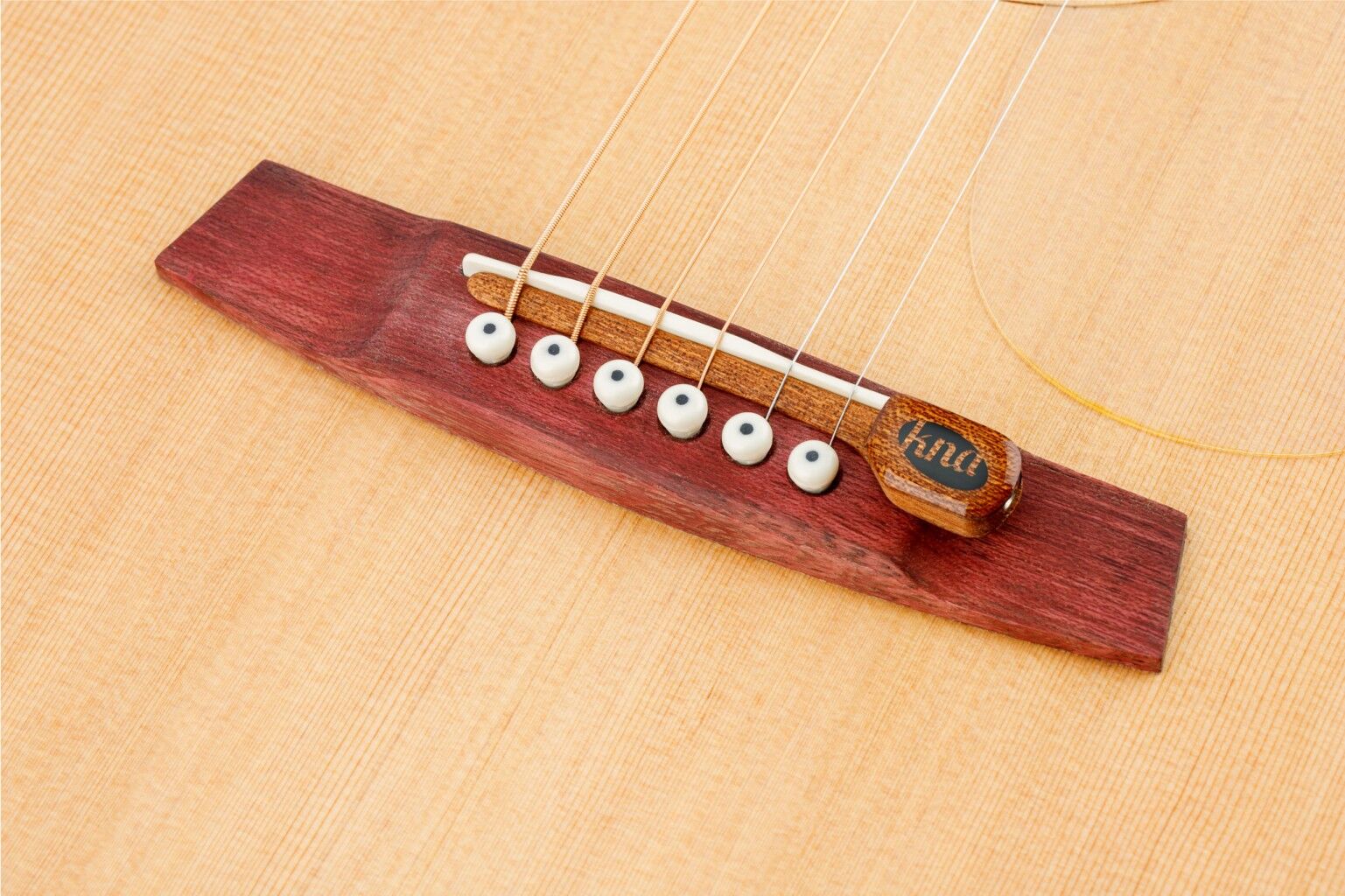

Natural sound
SG-1 has a passive design that reproduces the natural sound of the instrument with no need for a battery.

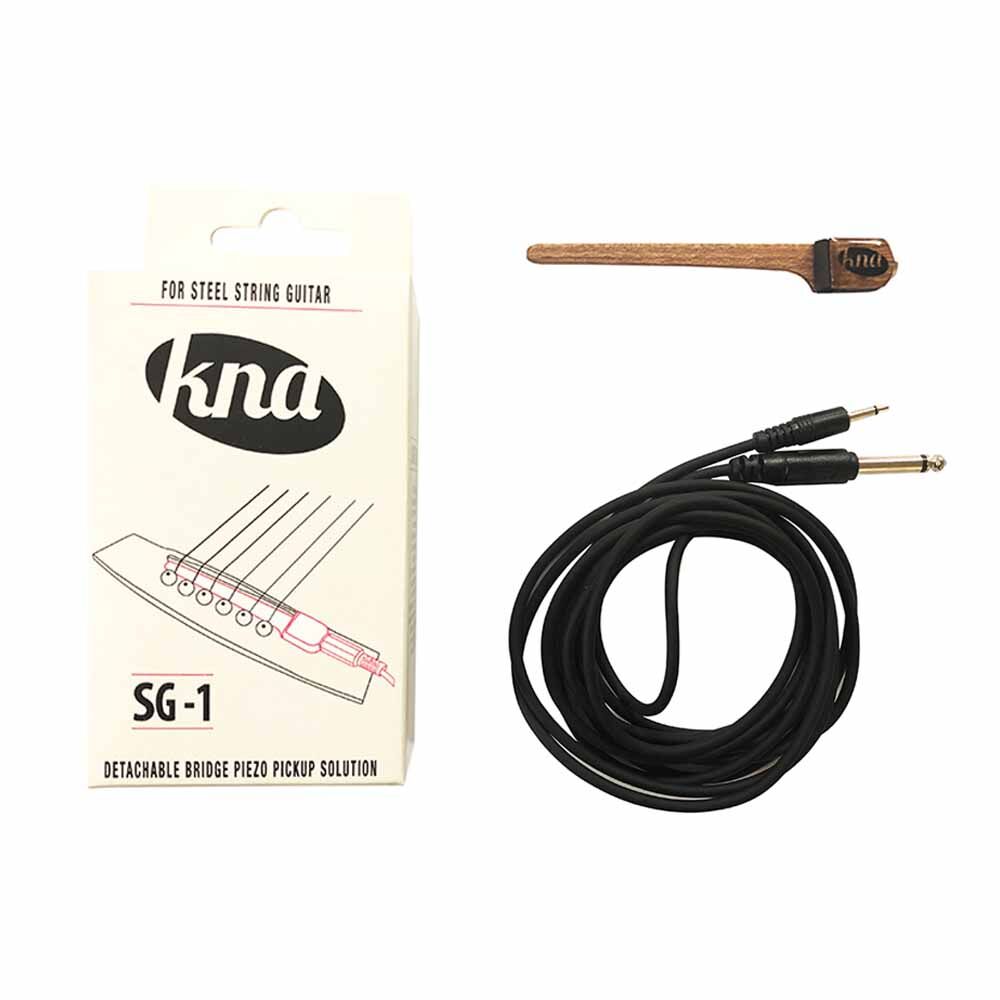

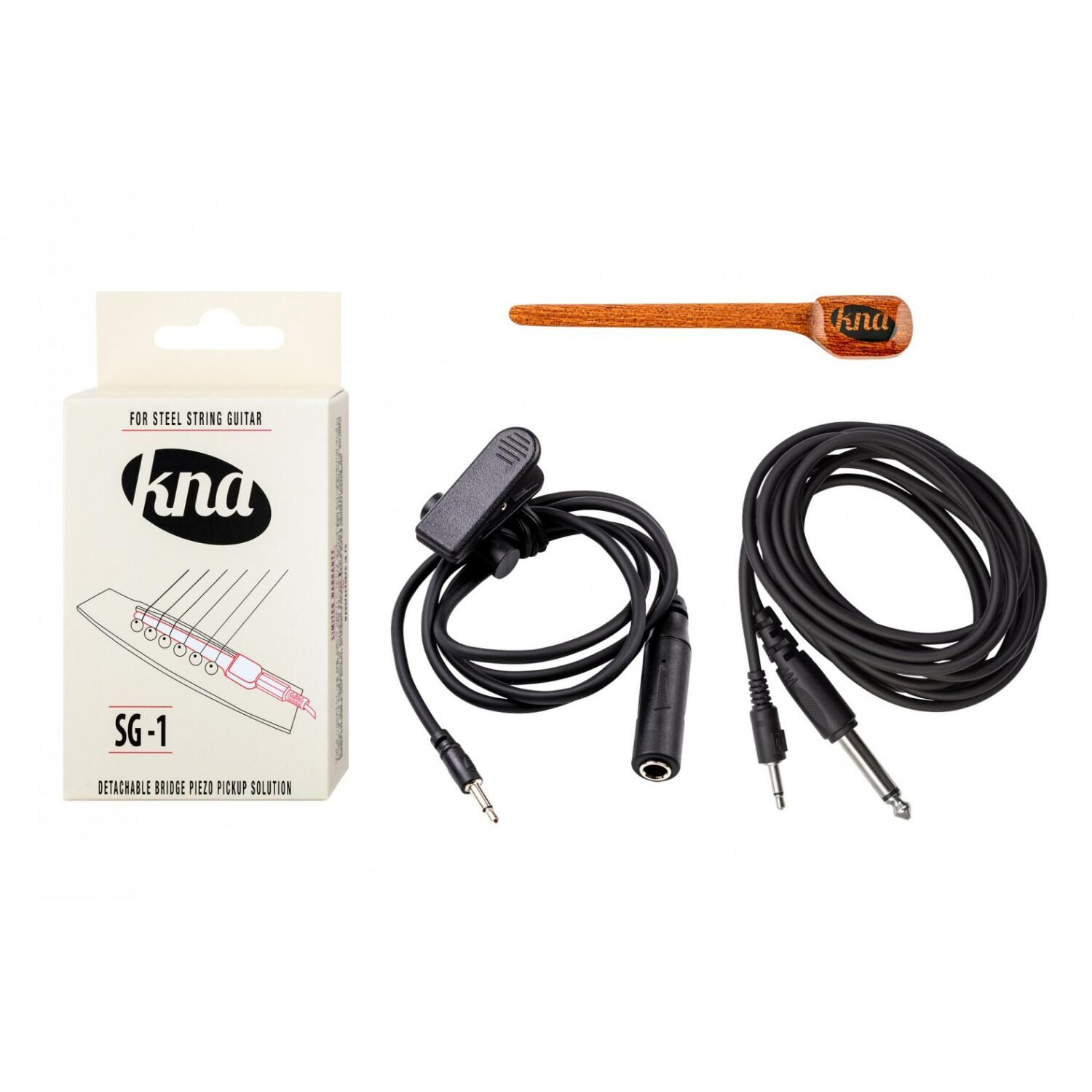

Complete set

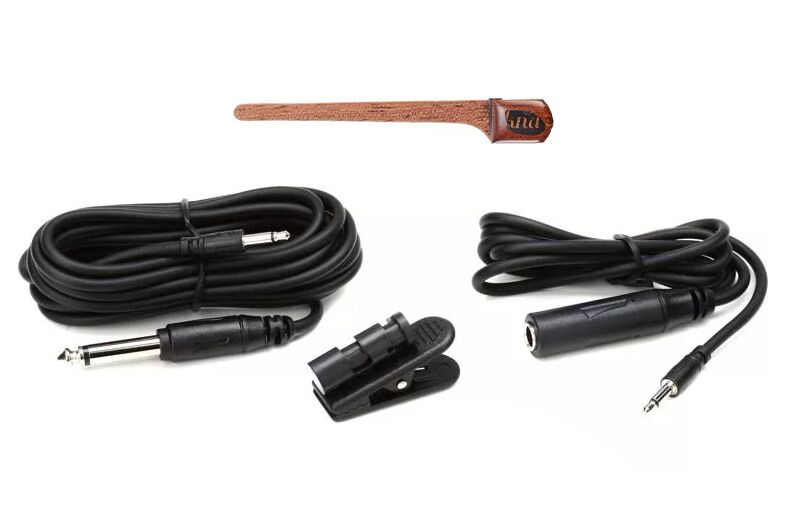

Two cables are included — a 9-ft. 1/8″ to 1/4″ and a 3-ft. 1/8″ to female 1/4″ jumper with safety clip to connect with your instrument cable.
Shipping Dimensions
Weight
0.5 kg
Dimensions
170 × 70 × 70 mm
Specifications
Weight
3.8g. / 0.137oz
Wood
Mahogany
Maximum Impedance
500 Ω
Cables
Jumper cable with safety clip
1meter / 3′
Amp cable
3meter / 9′
Measurements
Specified part
Letter
Size in MM (from*)
Size in MM (to*)
Size in INCH (from*)
Size in INCH (to*)
Transducer length
a
69,2
69,3
2,724
2,728
Jack housing length
b
17,3
17,4
0,681
0,685
Total pickup length
c
86,2
86,3
3,394
3,398
Transducer width at 6th string
d
4,3
4,4
0,169
0,173
Transducer width at 1st string
e
6,5
6,6
0,256
0,260
Active signal transfer area length
f
60,0
–
2,362
–
Transducer thickness
g
1,6
1,7
0,063
0,067
Jack housing height
h
8,9
9,0
0,350
0,354
