The KNA NG-1 is the perfect nylon string guitar pickup choice for guitarists who need a piezo pickup to transfer the natural sound of their instrument. It’s a classical guitar pickup that brings true nylon-string sound without modification to the instrument.
Features:

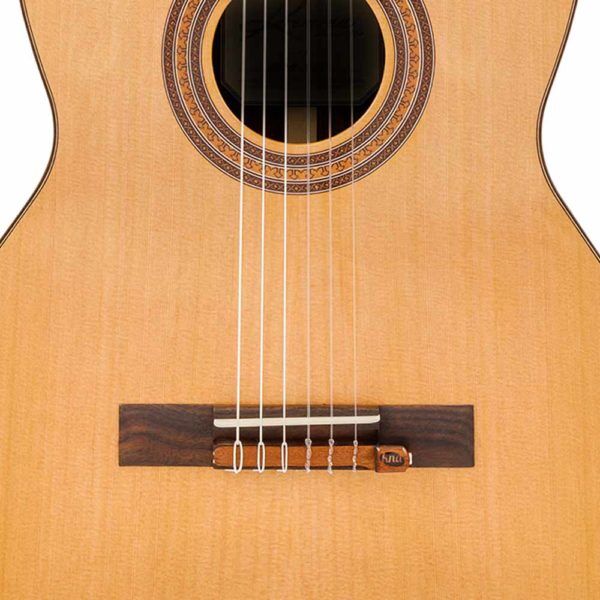

Installs with no modification
NG-1 installs safely and securely on the classical or flamenco guitar tie block utilizing the tension of the strings.

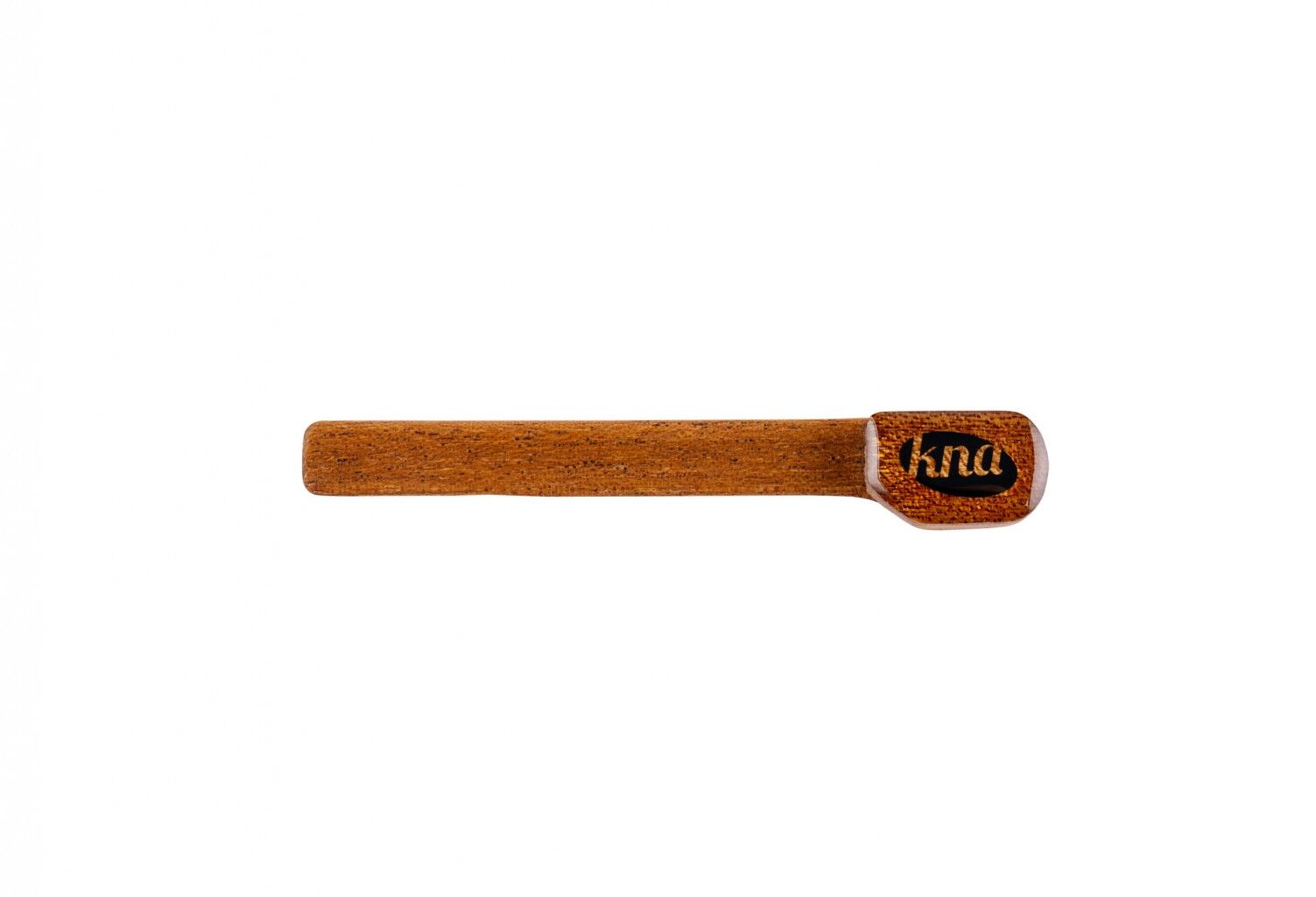

Wood case
The piezo element is encased in elegant and stylish mahogany. The lightweight assembly offers maximum tonal sensitivity.
Natural sound
NG-1 has a passive design that reproduces the natural sound of the instrument with no need for a battery.

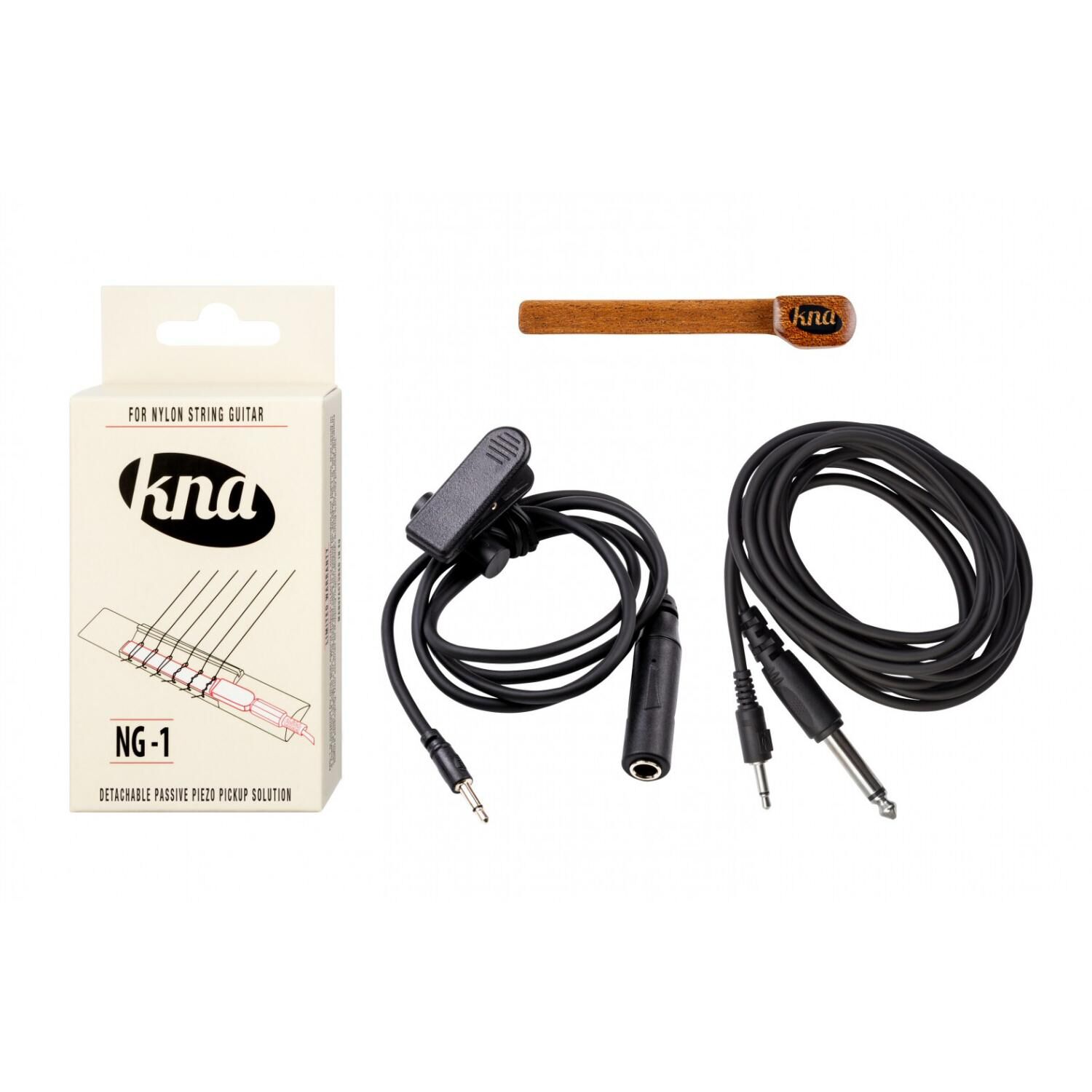

Complete Set

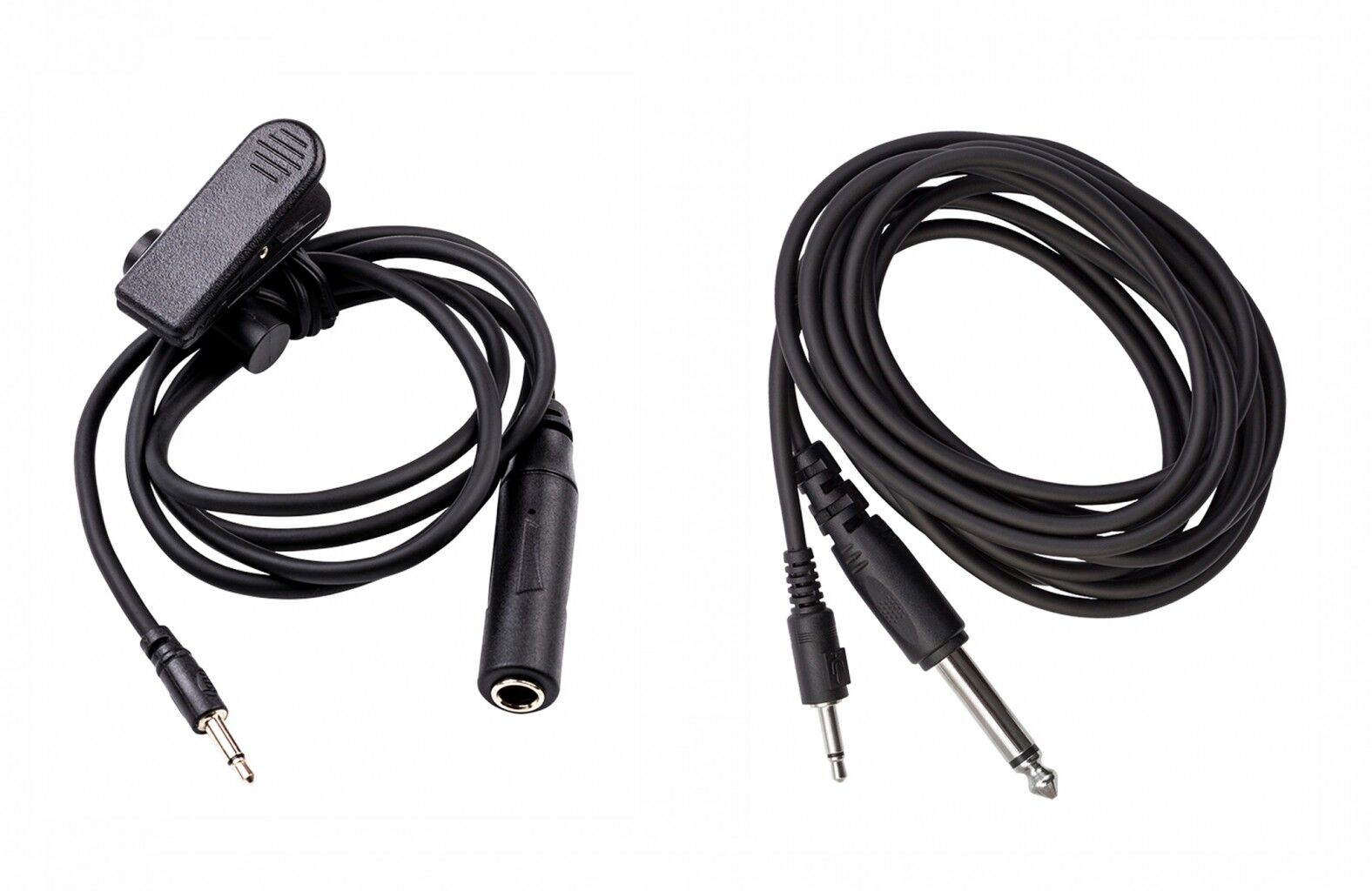

Two cables are included — a 9-ft. 1/8″ to 1/4″ and a 3-ft. 1/8″ to female 1/4″ jumper with safety clip to connect with your instrument cable.
Shipping Dimensions
Weight
0.2 kg
Dimensions
140 × 70 × 50 mm
Specifications
Weight
3.8g. / 0.137oz
Wood
Mahogany
Maximum Impedance
500 Ω
Cables
3meter / 9′
Measurements
Specified part
Letter
Size in MM (from*)
Size in MM (to*)
Size in INCH (from*)
Size in INCH (to*)
Transducer length
a
76,0
77,0
2,992
3,031
Jack housing length
b
17,3
17,4
0,681
0,685
Total pickup length
c
95,0
–
3,740
–
Transducer width
d
9,4
–
0,370
–
Active signal transfer area length
e
69,1
69,2
2,720
2,724
Transducer thickness
f
2,1
2,2
0,083
0,087
Jack housing height
g
9,2
9,3
0,362
0,366
