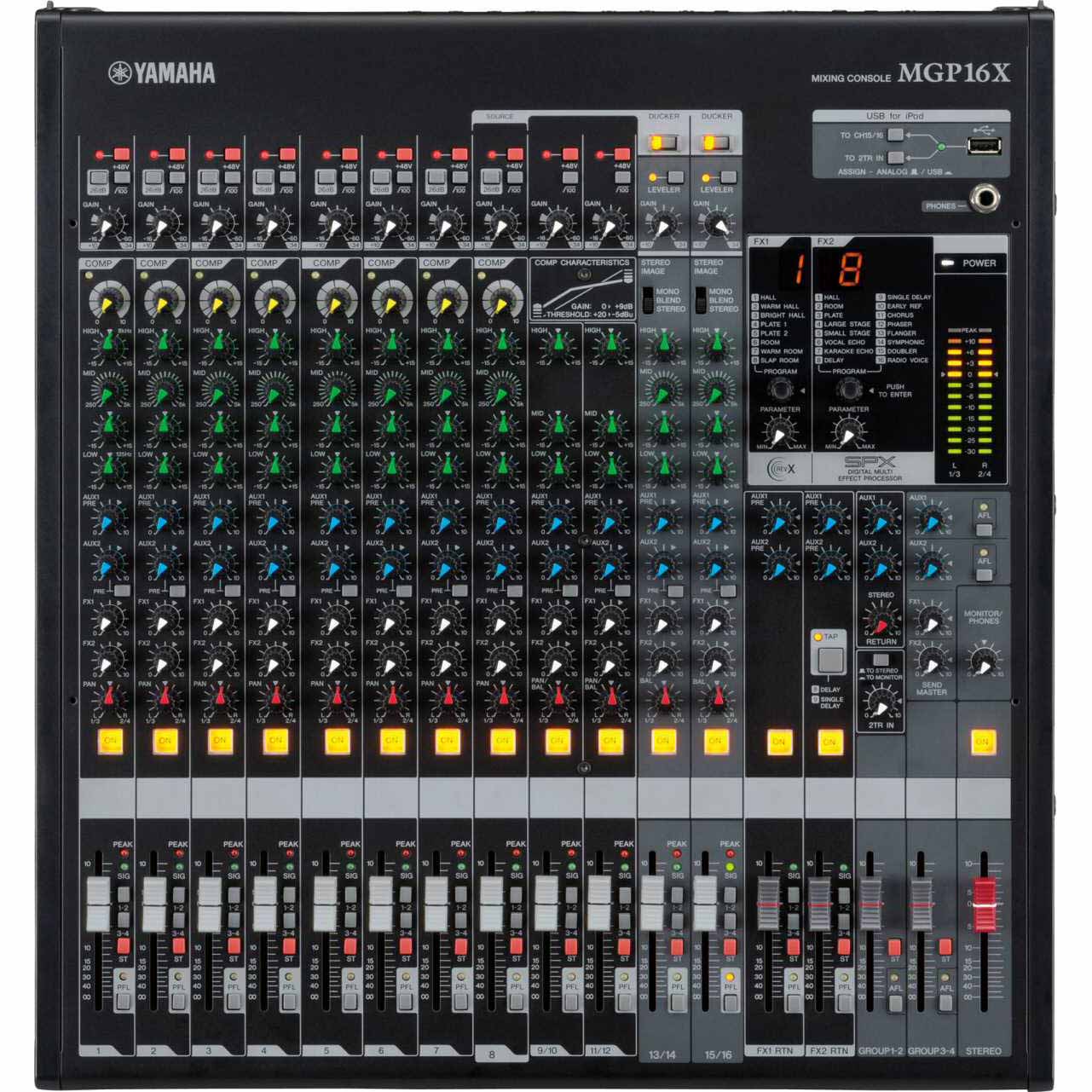

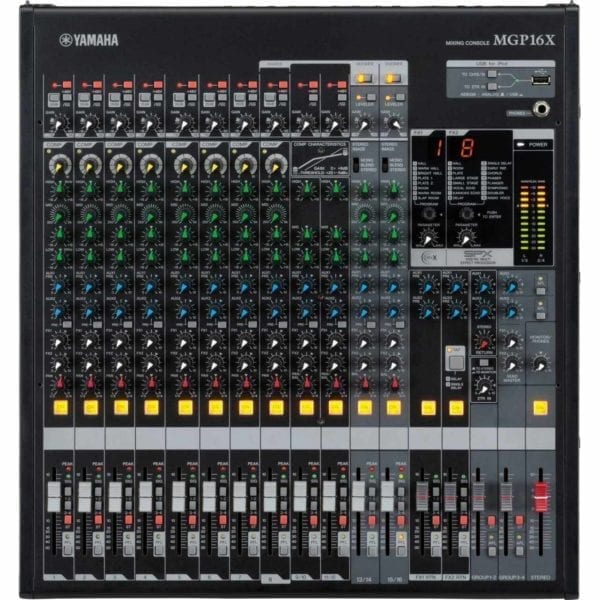

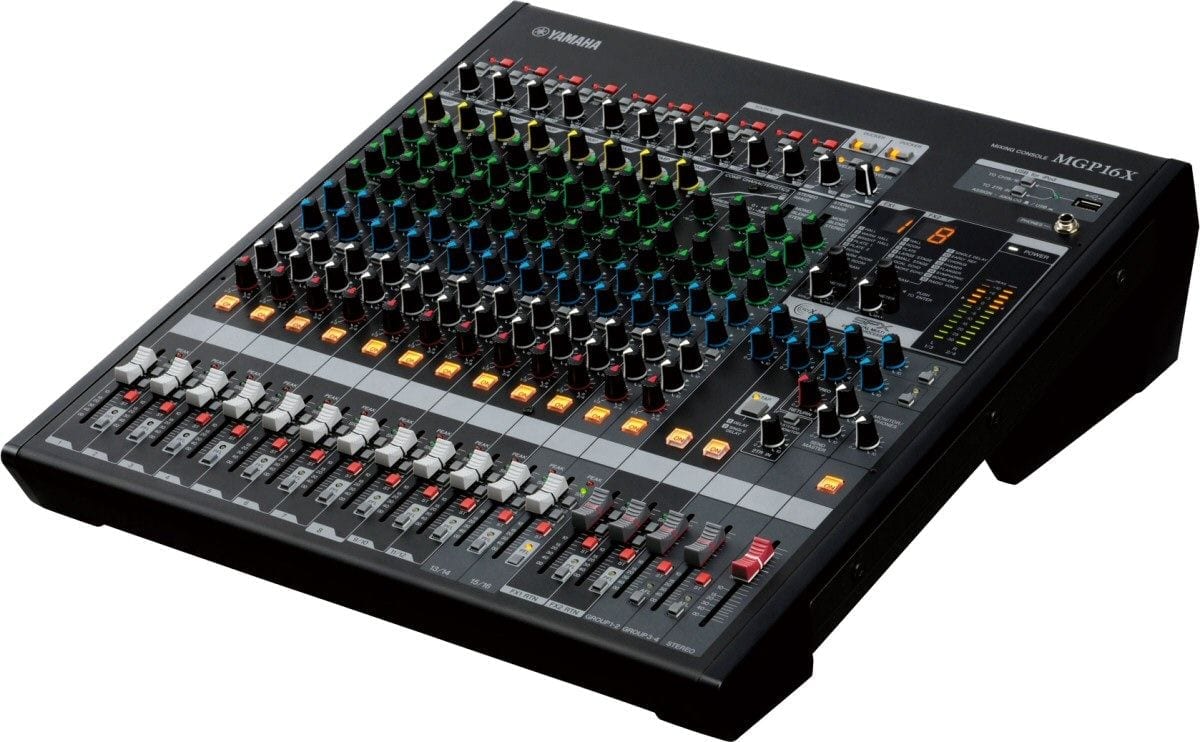

Yamaha MGP16X 16 Channel Mixing Console
- Studio-grade Discrete Class A "D-PRE” Mic Preamps with an Inverted Darlington Circuit
- Musical X-pressive EQ based on Yamaha’s famed VCM Technology
- Professional 1-knob Compressors with LED Indicators
- High-grade Dual Digital Effects Processors: Advanced REV-X and Classic SPX
- Stereo Hybrid Channels utilizing a Powerful, Proprietary DSP
- Digital Connectivity for iPod/iPhone
- MGP Editor for Detailed Control of the Console's DSP settings via iPod/iPhone
- Rugged, Impact-resistant, Powder-coated Metal Chassis
- Integrated Rack-ears for Easy Rack Mounting
- Internal Universal Power Supply for World-wide Use
- 10 Mic Inputs with 48V Phantom Power and HPF per Channel
- Additional 2TR Inputs Provided to Accept the Output from Analog Devices or iPod/iPhone
- 16 Line Inputs (8 mono and 4 stereo)
- 4 GROUP Buses + ST Bus
- 2 AUX Sends + 2 FX Sends
Not just for live bands and DJ's, the MG Series mixing consoles can easily adapt to a truly impressive range of applications from portable PA to fixed installation. Now with the newly added digital functions and superior sound of the MGP, the possibilities are endless.
Drawing from our decades of experience crafting innovative, premium analog gear, Yamaha originally developed their new discrete Class-A microphone preamps for professional use in high-end recording equipment. Utilizing an inverted Darlington circuit design, the newly-refined D-PRE mic preamps deliver a fat, rich, smooth tone that gives the MGP Series a significant advantage over any other mixer in its class. With Yamaha's proprietary X-pressive EQ we've managed to capture ultimate analog authenticity by unlocking the mysterious secret behind the expressive sound shaping capabilities of sought-after classic EQ modules.
At the heart of the MGP's compact configuration, Yamaha have taken an innovative new approach to the utilization of digital technology in an analog mixer; adding high-resolution effects, iPod/iPhone integration and the superb functionality of our new Stereo Hybrid Channel to the warmth and musicality of premium analog sound. The MGP Series represents the ultimate balance of the converging technologies that are the heart and soul of Yamaha's extraordinary achievements in professional audio.
Outline
Mixing capability |
Mixing channels |
16 Line Inputs (8 mono and 4 stereo) |
GROUP |
4 GROUP Buses + ST Bus |
AUX |
2 AUX Sends + 2 FX Sends |
Input channel functions |
Compressor CH1-8,HPF(100Hz 12dB/oct), CH EQ(MONO) ±15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-8,13-16)/ Low 125Hz shelving, CH EQ(STEREO) ±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH9-12)/ Low 125Hz shelving |
On-board processors |
FX1:REV-X(8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control) |

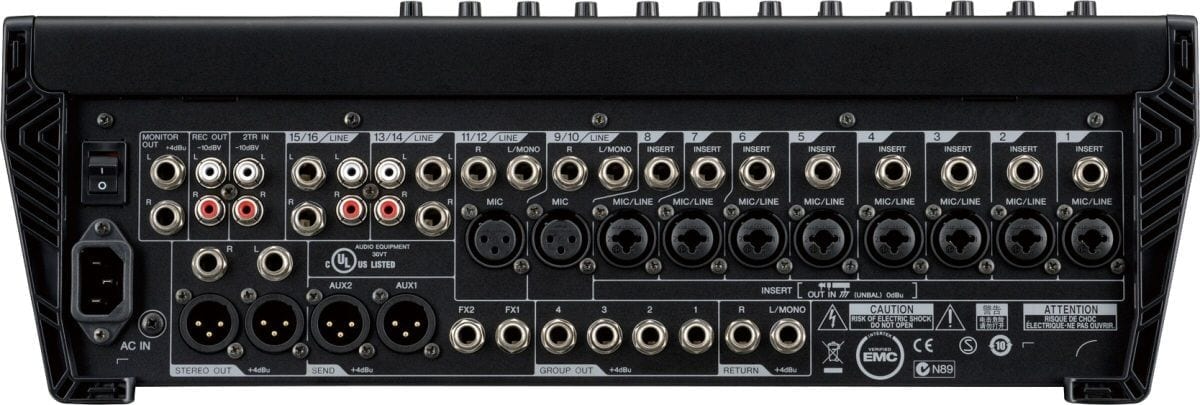

I/O |
Mic inputs |
MIC: 10 |
Phantom power |
48V phantom power per channel |
Line inputs |
LINE: 8mono+4stereo, CH INSERT: 8, RETURN: 1stereo, 2TR IN: 1 stereo |
Digital I/O |
USB Audio USB IN: iPod, iPhone exclusive |
General specifications
Total harmonic distortion |
0.02% (20Hz-20kHz@ +14dBu) |
Frequency response |
+0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz |
Hum & noise level |
Equivalent input noise |
-128 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum) |
Residual output noise |
-102 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum) |
Crosstalk |
-74dB @ 1kHz |
Power requirements |
100-240V 50Hz/60Hz |
Power consumption |
55W max |
Dimensions |
W |
447mm |
H |
143mm |
D |
495mm |
Net weight |
9.0kg |
