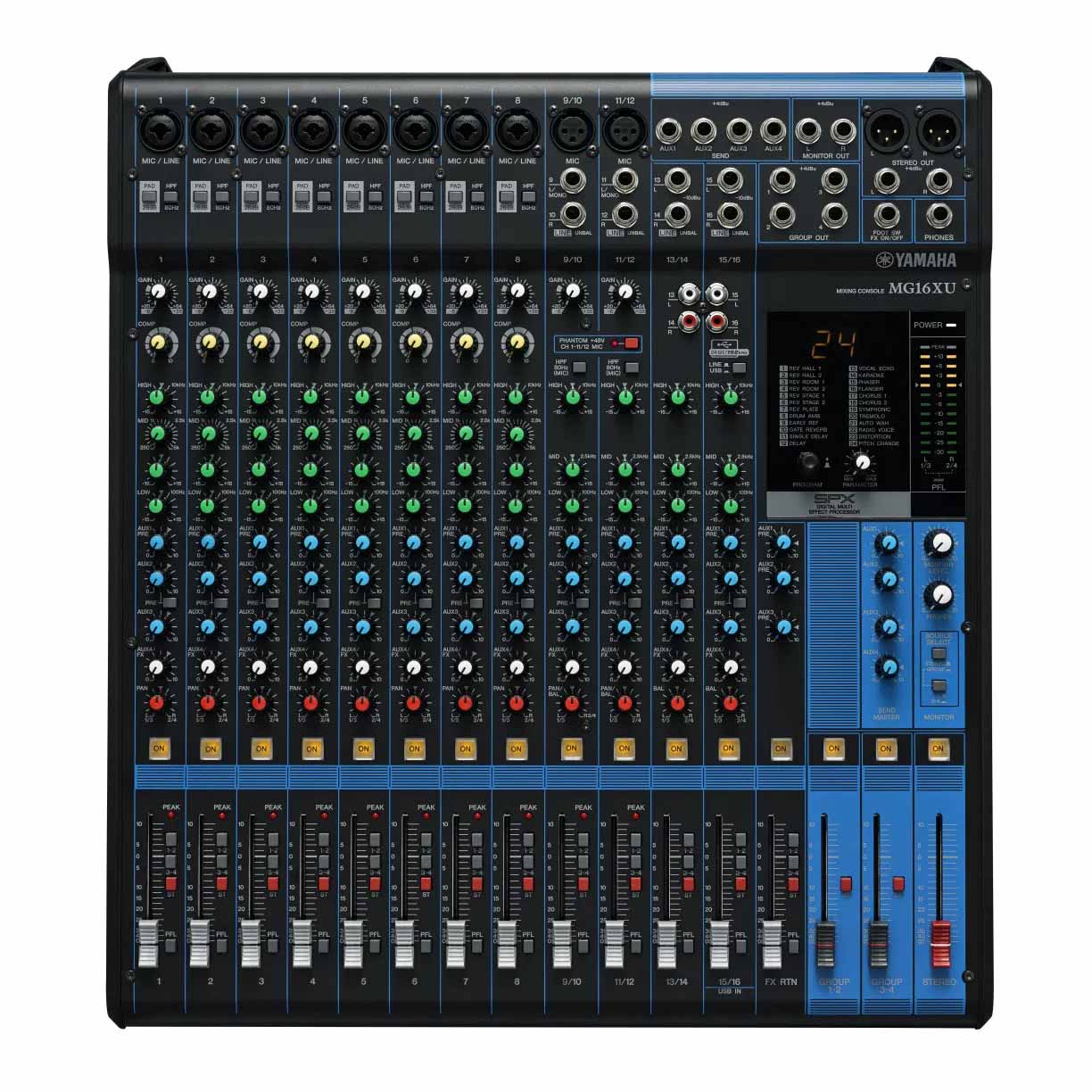

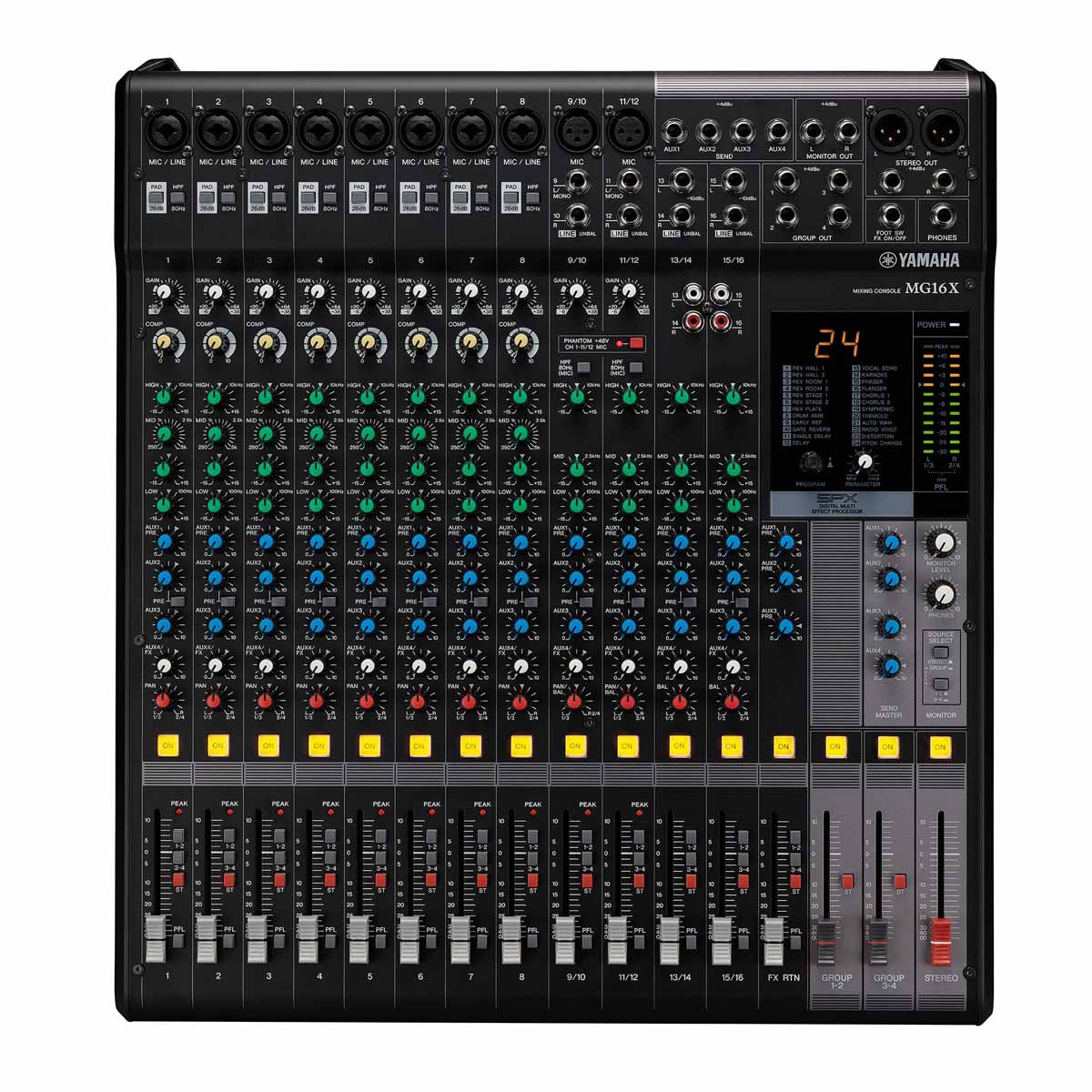

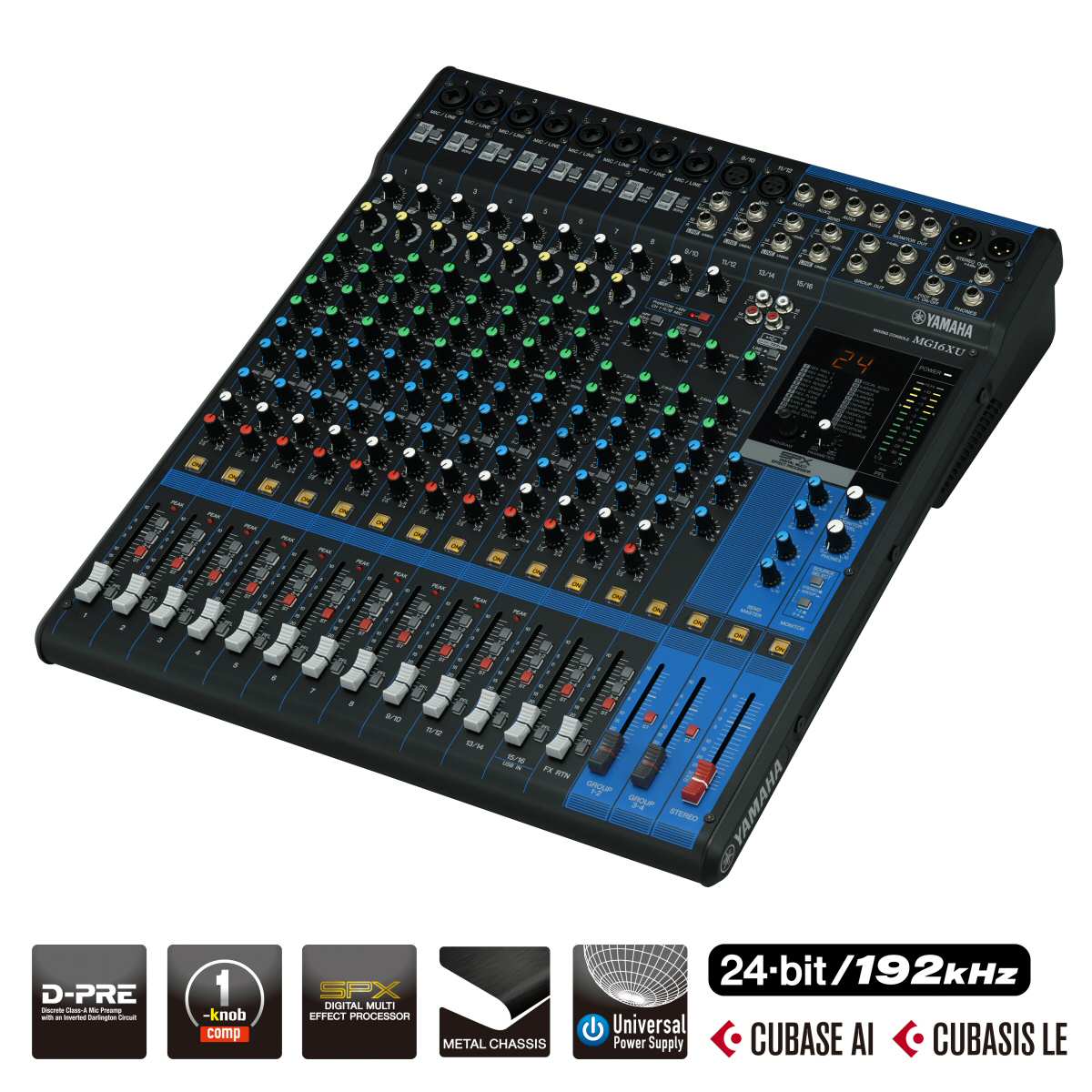

Yamaha MG16X 16 Channel Mixer with Effects

$849.99 inc GST

Brand: Yamaha

The Yamaha MG16X mixer features 10 D-PRE microphone preamps, 3-band EQ, one-knob compressors, XLR balanced outputs, SPX digital effects, +48V phantom power, a metal chassis and USB* connectivity.

*MG16XU only


PAY IN FULL  or  PIPERS PAY-AFTER
4 Interest Free Payments of $212.50
Category: Tag:

Description

Yamaha MG16X Compact Mixer

The Yamaha MG16X mixer features 10 D-PRE microphone preamps, 3-band EQ, one-knob compressors, XLR balanced outputs, SPX digital effects, +48V phantom power, a metal chassis and USB* connectivity on the MG16XU model.

  • 16-Channel Mixing Console
  • Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • 24-bit/192kHz 2in/2out USB Audio functions (MG16XU only)
  • Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter (MG16XU only)
  • Includes Cubase AI DAW software download version
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • USB Output (MG16XU)
  • Internal universal power supply for world-wide use
  • Rack Mount Kit Included
  • Metal chassis
  • Dimensions(W×H×D): 444 mm x 130 mm x 500 mm (17.5″ x 5.1″ x 19.7″)
  • Net Weight: 6.8 kg (15.0 lbs.)
For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalogue of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.



With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.



Shipping Dimensions

Weight 9.5 kg
Dimensions 550 × 520 × 210 mm

  MG16X
Mixing capability On-board processors SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
I/O Phantom power +48 V
Digital I/O MG16XU: USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels Mono[MIC/LINE] 8
Mono/Stereo[MIC/LINE] 2
Stereo[LINE] 2
Output Channels STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 4
GROUP OUT 4
Bus Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)
Input Channel Function PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2×12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
Total harmonic distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk -78 dB
Power requirements AC 100 – 240 V, 50 / 60 Hz
Power consumption 30 W
Dimensions W 444 mm (17.5″)
H 130 mm (5.1″)
D 500 mm (19.7″)
Net weight 6.8 kg (15.0 lbs.)
Accessories Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5
Others Operating Temperature: 0 to +40˚C

Shipping Dimensions

Weight 9.5 kg
Dimensions 550 × 520 × 210 mm
