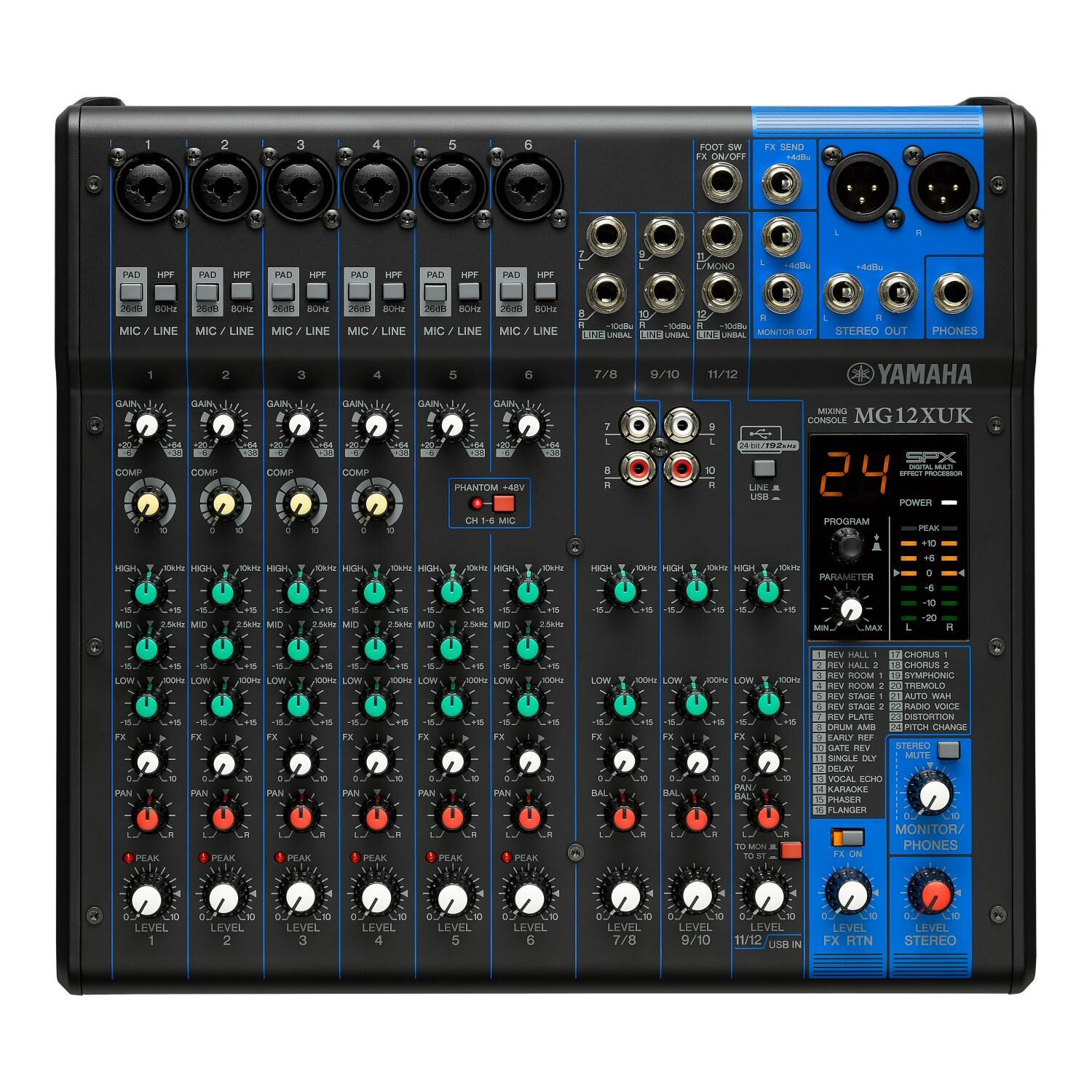

Yamaha MG12XUK 12-Channel Mixer with Effects

$549.99 inc GST

Brand: Yamaha

SKU: MG12XUK
UPC: 889025115117

The MG12X mixer features six D-PRE microphone preamps, 3-band EQ, one-knob compressors, XLR balanced outputs, SPX digital effects, +48V phantom power, a metal chassis and USB output.

1 AVAILABLE IN STORE

PAY IN FULL  or  PIPERS PAY-AFTER
4 Interest Free Payments of $137.50
Category: Tag:

Description

Yamaha MG12XUK Compact 12-Channel Mixer

The Yamaha MG12XUK mixer features six 6 D-PRE Microphone preamps, 12 Line Inputs (6 mono + 3 stereo) / 1 Stereo Bus / 1 AUX (incl. FX).

  • 12-Channel Mixing Console
  • Max. 6 Mic / 12 Line Inputs (6 mono + 3 stereo)
  • 1 Stereo Bus
  • 1 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • 24-bit / 192kHz 2in / 2out USB Audio functions
  • Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
  • Includes Cubase AI DAW software download version
  • Cubasis LE for iPad available at App Store
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Metal chassis
  • Dimensions(W×H×D): 315 mm x 91 mm x 297 mm (12.4″ x3.6″ x11.7″)
  • Net Weight: 3.0 kg (6.62 lbs.)
For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalogue of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

Shipping Dimensions

Weight 6 kg
Dimensions 200 × 480 × 390 mm

Mixing capability On-board processors SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
I/O Phantom power +48 V
Digital I/O USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels Mono[MIC/LINE] 4
Mono/Stereo[MIC/LINE] 2
Stereo[LINE] 2
Output Channels STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 2
GROUP OUT 2
Bus Stereo: 1, GROUP: 2, AUX: 2 (incl. FX)
Input Channel Function PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2×12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
Total harmonic distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk -78 dB
Power requirements AC 100 – 240 V, 50 / 60 Hz
Power consumption 22 W
Dimensions W 308 mm (12.1″)
H 118 mm (4.6″)
D 422 mm (16.6″)
Net weight 4.2 kg (9.3 lbs.)
Accessories Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5
Others Operating Temperature: 0 to +40˚C

Shipping Dimensions

Weight 6 kg
Dimensions 200 × 480 × 390 mm
