Description
FEATURES:
- 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF)
- 12-inch (305 mm) LF driver, 3-inch (76 mm) high-temperature voice coil
- 1.4-inch (35 mm) neodymium magnet HF driver with precision wave guide
- High quality, lightweight, cabinet design for easy transport, set up and installation

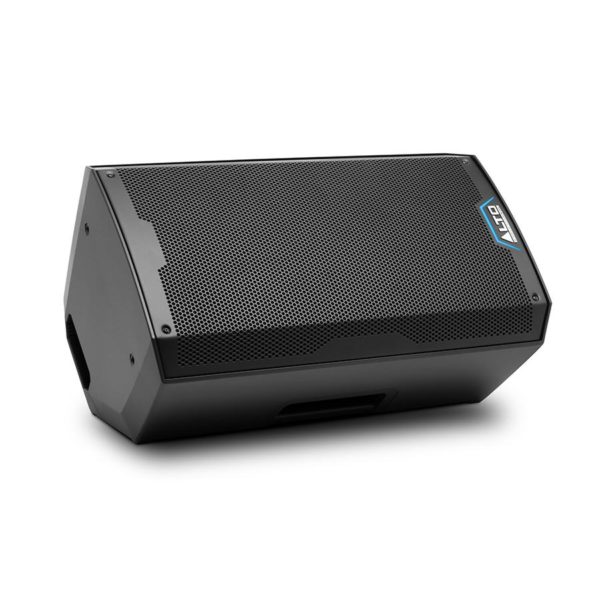

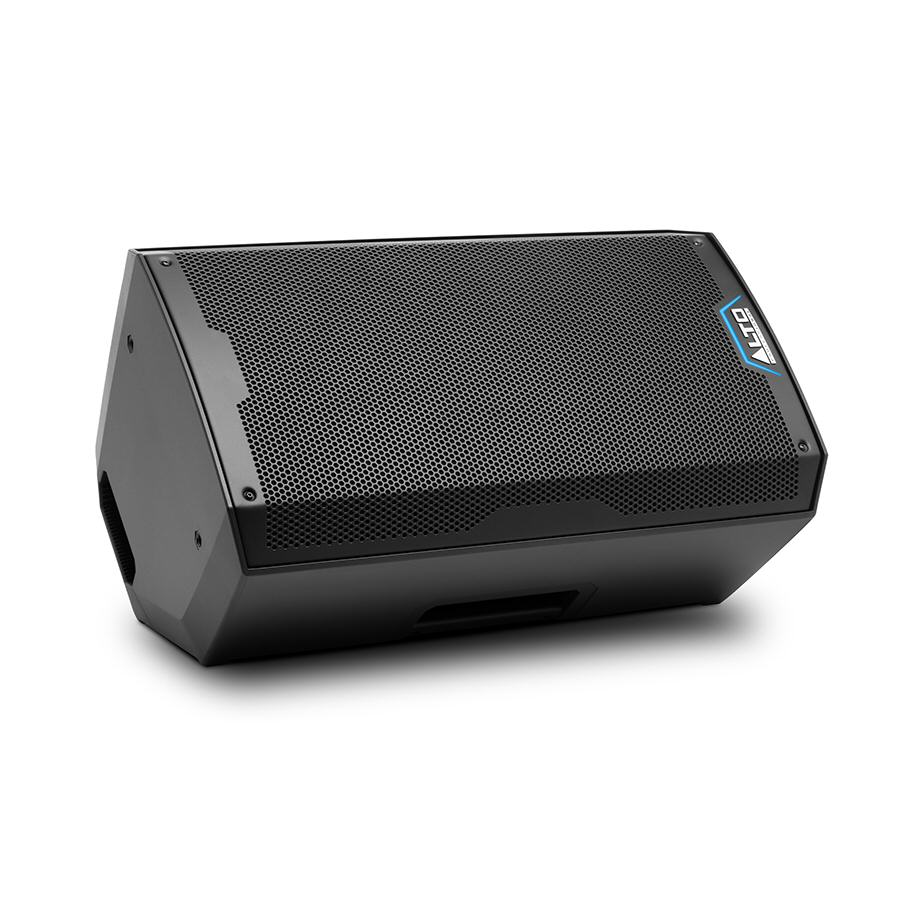

- Pole-mountable, wedge monitor, bracket installation or flown application with integral M10 suspension points
- Integrated 2-channel mixer with dual XLR 1/4-inch combo mic/line inputs, independent level controls, XLR Link output, Contour EQ switch and Ground-Lift switch
- Custom-engineered high-efficiency class D amplifiers with passive cooling design – no fan means the speaker runs cleaner, quieter and has greater long-term reliability
- Design Origin: Designed and tuned in the USA
The new Alto Professional Truesonic TS3 Series does everything you demand in a no-compromise family of professional loudspeakers. These speakers solve every performance and installation challenge you have and are high-performance in every sense: Their new transducers and amplifiers enable them to play extremely loud and clear, without compromise or restriction. And they are “high-performance” from a concept and manufacturing standpoint—Alto made sure that every aspect of their design outperformed what it had to do. The end result are loudspeakers that achieve a level of excellence and refinement that defy expectations.
The TS312 features a new 2000-watt peak (1000-watt continuous) amplifier, which is a significant advance over the 1100-watt peak (550-watt continuous) amplifiers in its predecessor.
It also boasts all-new low-frequency drivers, designed to play louder and handle more power. They also have a new horn-loaded high-frequency driver which features a brand-new heat sink design that provides exceptional heat dissipation for impressive power-handling, even at all-night-long concert levels. Because these new drivers can safely handle the additional power, the TS3’s take full advantage of the increased wattage and will play at higher SPLs with lower distortion.
The new Series 3 TS speakers are even easier to use than before, with an updated control panel and clearer control indications and detentes that make for a faster, more precise setup.
2000 watts of bi-amplified power, newly-designed drivers and easier, more satisfying controls and setup—the new TS312 doesn’t merely meet your requirements. It makes you re-think what’s possible.
TECH SPECS:
- Output Power: 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF)
- LF Driver: 12-inch (305 mm) LF driver, 3-inch (76 mm) high-temperature voice coil
- HF Driver: 1.4-inch (35 mm) neodymium magnet HF driver with precision wave guide
- Crossover: 2 kHz
- Maximum SPL: 131 dB peak, 128 dB continuous (dB SPL @ 1 m)
- Frequency Response: 53 Hz – 20 kHz (+/- 3 dB)
- Frequency Range: 46 Hz – 22 kHz (-10 dB)
- Horn Coverage: 90° H x 60° V nominal
- Equalization: Contour Switch Low and High Frequency +3dB Boost

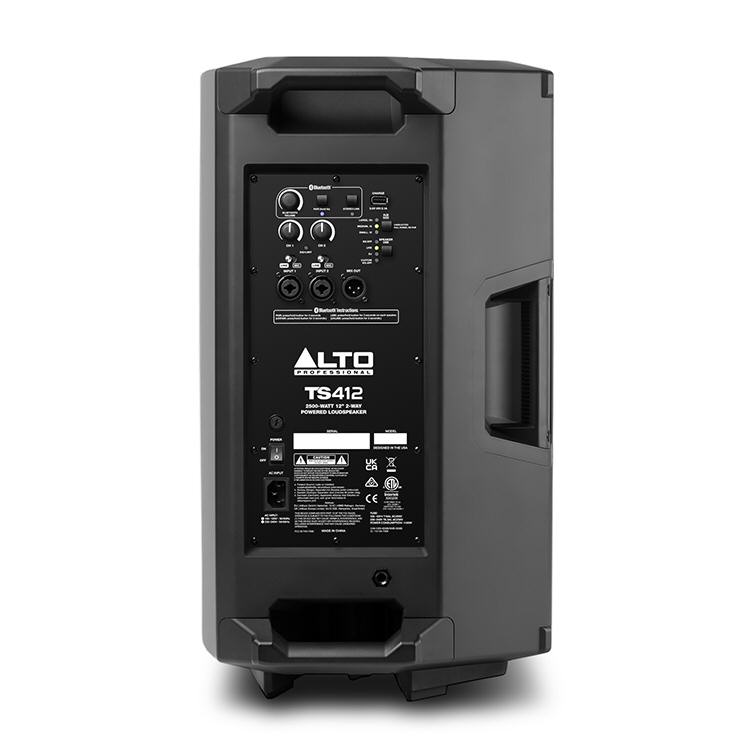

- Connectors: (2) XLR/TRS 1/4” (6.35 mm) combo inputs, (1) XLR link output, (1) IEC power cable input
- Controls: (2) Volume, Power on/off switch, Contour switch, Ground-Lift switch
- Indicators: 2 x Power LED (front and rear), Clip limiter LED
- Protection: Electronic clip, Thermal and transducer overdrive protection
- Power Connection: IEC with Mains Fuse
- AC Voltage Input: 100,110-120,220–240 V, 50/60 Hz
- Enclosure: Trapezoidal, injection-molded, polypropylene enclosure, with perforated steel grille
- Mounting/Installation: 36 mm standard pole mount, Wall or ceiling mount using TSB125 bracket, Flown application with integral M10 suspension points, Wedge monitor
- Dimensions: (H x W x D): 23.8” x 13.9” x 13.8” / 605mm x 354mm x 350mm
- Net Weight: 35.9 lbs. / 16.3 kg.
- Design Origin: Designed and tuned in the USA
- Accessories: TSB125 Bracket, TS212 Cover
