Alnico V magnets are used for both single coil and humbucker to deliver a clear strumming tone with good projection plus a tight sound that doesn't get buried in the ensemble.
A coil tap function on the rear humbucker delivers a delivers a wide range of tonal possibilities, from hard distortion to an edgy single coil tone. A switch in the tone knob allows quick switching between humbucker and single coil tone. Setting the pickup selector to the 4th position automatically selects the coil tap function that delivers a clear halftone from the pair of singles.
The block saddle type vintage tremolo offers excellent operation. The heavy block type saddle delivers rich sustain and deep tone.

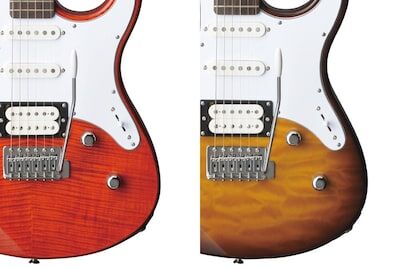

Like the top-end PACIFICA models, the rear pickup is mounted directly to the body. This configuration captures body resonance, delivering greater dynamic tone rather than pickguard mounting.
1 : 5P Pickup Selector
2 : Master Volume (Push-Pull Switch)
3 : Master Tone
Construction | Bolt-on | |
---|---|---|
Scale Length | 25 1/2" (647.7mm) | |
Fingerboard | Rosewood | |
Radius | 13 3/4" (350mm) | |
Frets | 22 | |
Body | Alder | |
Neck | Maple | |
Tuners | Diecast | |
Bridge | Vintage Tremolo with Block Saddle | |
Pickups | Alnico V Single x 2, Alnico V Humbucker x 1 | |
Pickup Switch | 5-Position Lever | |
Controls | Master Volume, Master Tone with Push-Pull Coil Tap Switch |
