PH-3 Phase Shifter Pedal

$219.00 inc GST

Brand: Boss

SKU: PH-3
UPC: 761294053034

The BOSS PH-3 Phase Shifter pedal provides a wealth of vintage and modern phasing effects, including new “Rise” and “Fall” modes for unique, unidirectional phasing.

2 AVAILABLE IN STORE

PAY IN FULL  or  PIPERS PAY-AFTER
4 Interest Free Payments of $54.75

Description

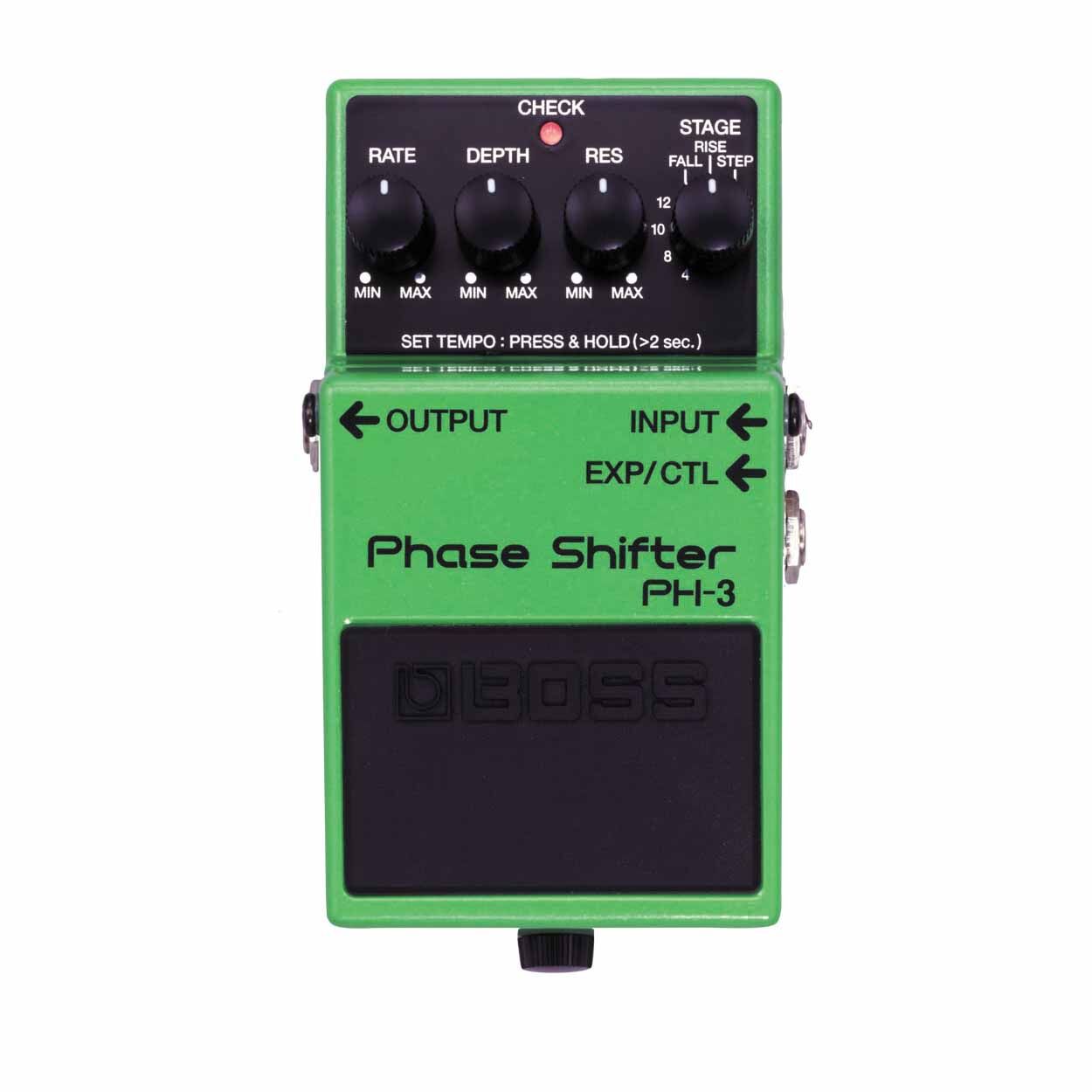

Boss PH-3 Phase Shifter Pedal

The BOSS PH-3 Phase Shifter pedal provides a wealth of vintage and modern phasing effects, including new “Rise” and “Fall” modes for unique, unidirectional phasing. Syncing these phasing effects is as simple as tapping the pedal to the desired tempo, while an optional expression pedal provides real-time control of the PH-3’s Rate, Filter and Tempo.

  • Compact pedal with versatile vintage and modern BOSS phasing
  • New “Rise” and “Fall” modes create unidirectional phasing
  • Includes classic multi-stage phasers with selectable stages
  • Realtime control of Rate via optional expression pedal
  • Tap tempo sync of phasing effects
  • BOSS five-year warranty

“Rise” and “Fall” Effects

In addition to standard up and down cycles, the new PH-3 Infinite Phaser can produce entirely upward or downward moving sounds through its new Rise and Fall effects. There’s also 4-, 8-, 10-, and 12-stage phasers, plus a Step effect.

Total Control

Syncing the PH-3’s phasing effects can be achieved by simply tapping the pedal to the tempo desired. Or, for maximum control, connect an optional expression pedal to control both rate and filter in real time as you play.





Shipping Dimensions

Weight 1 kg
Dimensions 150 × 70 × 90 mm

Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Bypass
Buffered bypass
Controls
STAGE switch
RES(Resonance) knob
DEPTH knob
RATE knob
Pedal switch
Indicator
CHECK indicator (Used for indication of check battery)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
EXP/CTL jack: 1/4-inch stereo phone type
DC IN jack
Power Supply
Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)
Current Draw
40 mA
Expected battery life under continuous use
Alkaline: Approx. 9.5 hours
Carbon: Approx. 3.5 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Owner’s manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Alkaline battery (9 V, 6LR61)
Options (sold separately)
AC adaptor: PSA series
Expression pedal: EV-30/FV-500L/FV-500H, Roland EV-5
Footswitch(momentary-type): FS-5U/FS-6/FS-7
Size and Weight
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight (including battery)
415 g
15 oz
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.




Shipping Dimensions

Weight 1 kg
Dimensions 150 × 70 × 90 mm
