DD-200 Digital Delay Twin Pedal

$449.00 inc GST

Brand: Boss

SKU: DD-200
UPC: 761294514603

The BOSS DD-200 Digital Delay pedal brings together sounds and features inherited from the flagship DD-500 into an even smaller footprint. 12 different modes offer an inspiring variety of delay colors from modern digital to classic analog, letting you dial up everything from basic echoes to rich ambient pads and everything in-between. There’s also a looper that’s always ready to use, plus a selectable carryover function for seamless transitions between memories.



1 AVAILABLE IN STORE

PAY IN FULL  or  PIPERS PAY-AFTER
4 Interest Free Payments of $112.25

Description

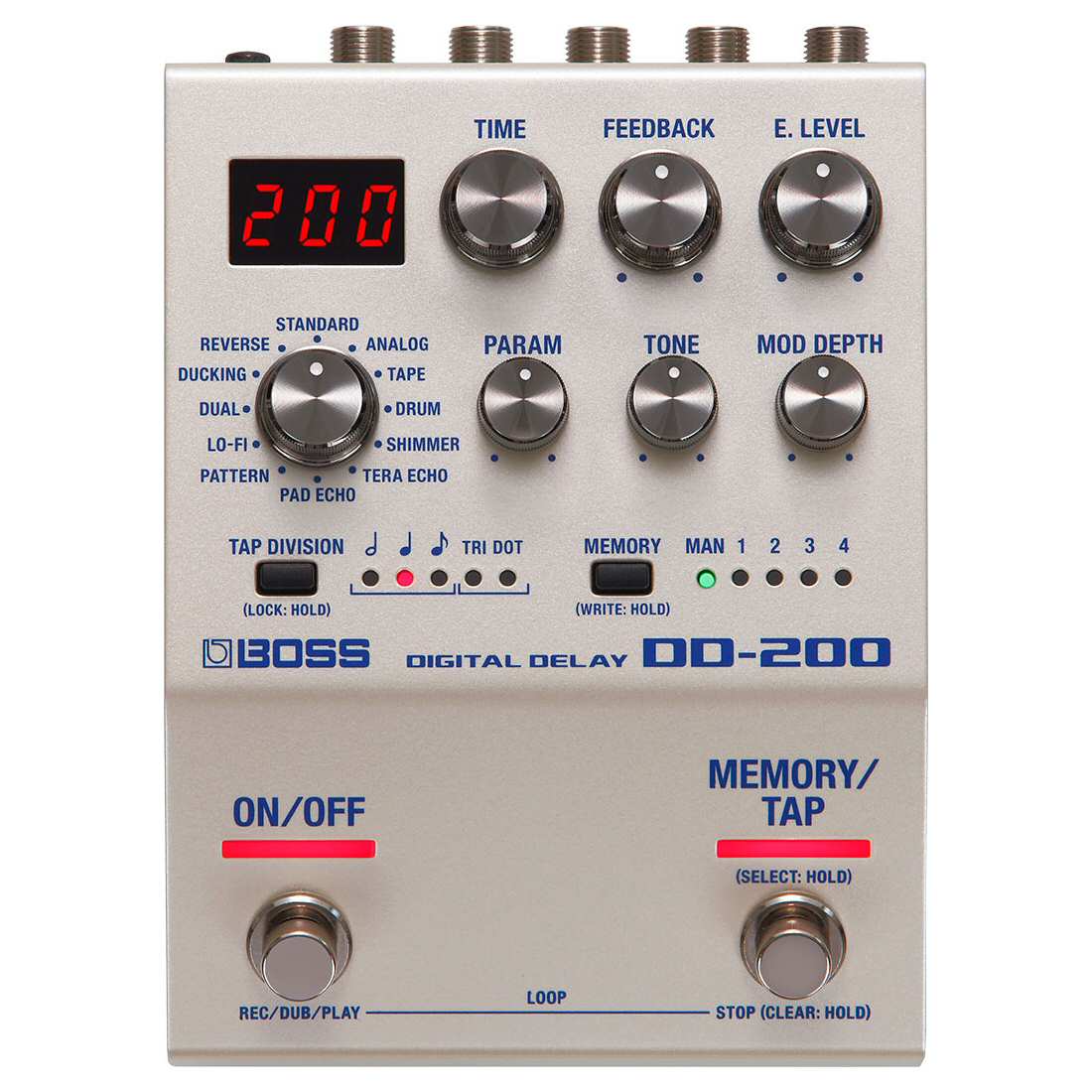

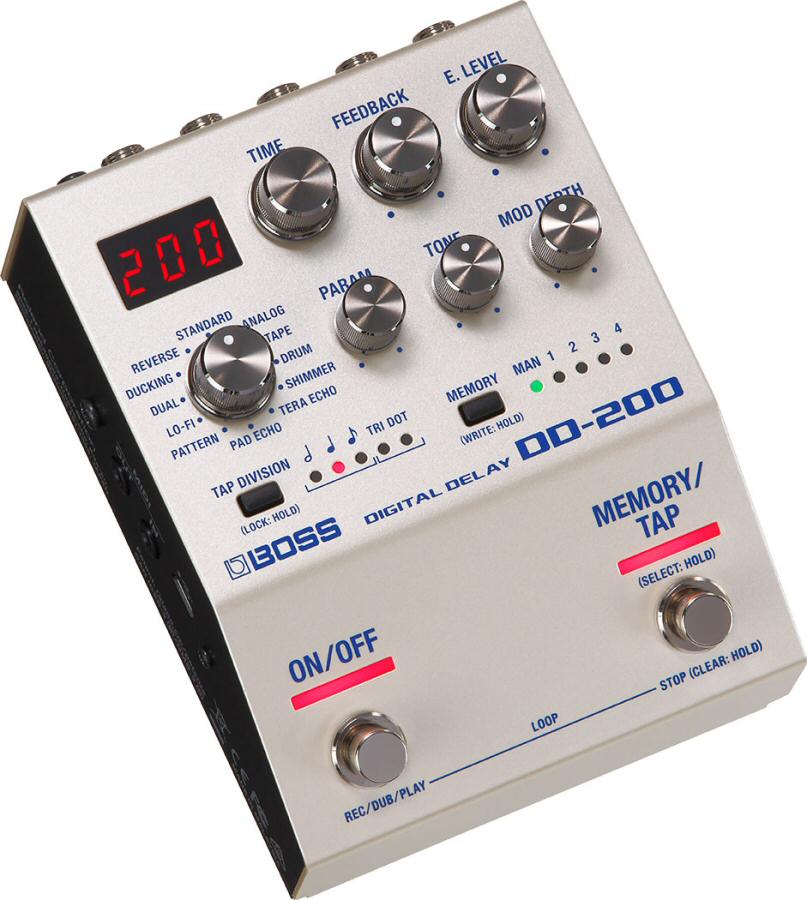

Boss DD-200 Digital Delay Twin Pedal

The DD-200 Digital Delay brings together sounds and features inherited from the flagship DD-500 into an even smaller footprint. Twelve different modes offer an inspiring variety of delay colors from modern digital to classic analog, letting you dial up everything from basic echoes to rich ambient pads and everything in-between. There’s also a looper that’s always ready to use, plus a selectable carryover function for seamless transitions between memories.

The free Version 1.1 software update brings increased flexibility to the BOSS 200 series, greatly expanding the onboard memory capacity for storing and recalling sounds. There are now 128 user setups available. Setups can also be recalled directly via MIDI program change.

  • Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
  • Twelve versatile modes provide a wide range of delay types
  • Fast, easy operation with hands-on controls
  • Real-time panel setting and four memories for storing favorite sounds
  • Phrase looper with up to 60 seconds of recording time
  • Panel Lock function disables controls to prevent unwanted changes
  • Customizable multi-function footswitches for bypass, tap tempo, memory selection, looper control, and more
  • Support for expanded control via external footswitches, an expression pedal, or MIDI
  • Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
  • Micro USB jack for firmware updates
  • Analog dry through and buffered bypass
  • Runs on PSA-series AC adaptor or three AA-size batteries

Twelve Modes, Unlimited Sounds
With 12 different modes to choose from, the DD-200 Digital Delay provides nearly any flavor of delay in an amazingly compact size. At your command are super-clean digital delays, gritty analog echoes, and spot-on retro sounds from the Roland RE-201 Space Echo and Binson Echorec 2. There’s also a variety of options for creating reverse effects, lo-fi tones, and pulsing rhythmic sounds with layered delays. And with the Tera Echo, Shimmer, and Pad Echo modes, immersive ambient colors are just a knob twist away.

Dial in Sounds Fast
The DD-200 features a no-nonsense interface, making it easy to craft inspiring sounds in the heat of the moment. Essential delay parameters are provided on dedicated controls for direct, hands-on access. And in each mode, the function of the PARAM knob changes to parameters tailored for the selected type, delivering extended control with no need to menu dive.

Save and Recall Your Favourite Setups
The DD-200 offers four onboard memories for saving your favorite setups and recalling them while performing. There’s also a Manual setting that reflects the current panel status, essentially giving you a fifth setup to choose from. You can scroll through memories with a DD-200 footswitch, and it’s possible to limit the scrolling range or assign memories directly for even faster access. And by enabling the carryover function, the active delay repeats will keep sounding as you change memories for smooth, free-flowing transitions.

Deep Real-Time Control
By default, the DD-200’s multi-function footswitches provide access to basic functions like bypass, memory scrolling, tap tempo, and looper control. But you can easily reassign them to hold, warp, and many other functions. External control is also possible via footswitches or an expression pedal, and MIDI I/O is even provided on space-saving mini TRS jacks. Via MIDI, you’re able to chain multiple 200 series pedals and select memories on all of them at once, and also control a wide range of functions from MIDI devices like the ES-8 and ES-5 effects switchers.

Ready-to-Go Looper
Any time you’re ready, pressing the DD-200’s two footswitches together puts you into looper mode. Up to 60 seconds of mono recording time is available, and operation is simple and direct with the onboard switches. And since the looper engine functions independently, you’re able to develop expressive loops with any of the DD-200’s rich delay sounds.

DD-200 Delay Modes
  • Standard—Clear digital delay. PARAM adjusts the delay attack.
  • Analog—Emulates classic analog “BBD” delays like the BOSS DM series. PARAM controls character and distortion amount.
  • Tape—Emulates the warm tape-based sound of the legendary Roland RE-201 Space Echo. PARAM selects different combinations of three playback heads, and also adjusts the amount of distortion in the delay sound.
  • Drum—Models the drum-based Binson Echorec 2. PARAM selects different combinations of four playback heads, and also adjusts the amount of distortion in the delay sound.
  • Shimmer—Pitch-shifted delay for lush, heavenly textures. PARAM adjusts the delay brightness.
  • Tera Echo—Spacious, animated ambience effect derived from the BOSS TE-2 pedal. PARAM adjusts the sound character.
  • Pad Echo—Newly developed delay sound for creating drifting ambient textures. PARAM adjusts the delay attack.
  • Pattern—Rhythmic sounds with 16 delay lines layered together. PARAM selects different pattern variations.
  • Lo-Fi—Delay sound with fat, distorted character. PARAM adjusts the distortion effect.
  • Dual—Two different delay lines connected in series. PARAM adjusts the time of the second delay.
  • Reverse—Backwards delay for cool psychedelic effects and other unique tones. PARAM adjusts the delay attack.
  • Ducking—Delay with a built-in ducking effect. PARAM adjusts the input sensitivity.

*The product names mentioned on this page are registered trademarks or trademarks of their respective owners. These names are used because it is the most practical way of describing the sounds that are simulated.


Shipping Dimensions

Weight 5 kg
Dimensions 150 × 150 × 70 mm

Specifications
Sampling Frequency
96 kHz
AD/DA Conversion
32 bits
Processing
32-bit floating point
Modes
12 modes
STANDARD, ANALOG, TAPE, DRUM, SHIMMER, TERA ECHO, PAD ECHO, PATTERN, LO-FI, DUAL, DUCKING, REVERSE
Memory
4 + Manual
Nominal Input Level
INPUT A/MONO, B: -10 dBu
Maximum Input Level
INPUT A/MONO, B: +7 dBu
Input Impedance
INPUT A/MONO, B: 2 M ohm
Nominal Output Level
OUTPUT A/MONO, B: -10 dBu
Maximum Output Level
OUTPUT A/MONO, B: +7 dBu
Output Impedance
OUTPUT A/MONO, B: 1 k ohms
Recommended Load Impedance
OUTPUT A/MONO, B: 10 k ohms or greater
Bypass
Buffered bypass
Controls
ON/OFF switch, MEMORY/TAP switch
MODE knob, TIME knob, FEEDBACK knob, E. LEVEL Knob, PARAM knob, TONE knob, MOD DEPTH knob
TAP DIVISION button, MEMORY button
Display
7 segments, 3 characters (LED)
Indicator
TAP DIVISION indicator, MEMORY (MAN, 1–4) indicators
Connectors
INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)
Power Supply
Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
Current Draw
225 mA
Expected Battery Life Under Continuous Use
Alkaline: Approx. 4 Hours
* These figures will vary depending on the actual conditions of use.
Accessories
Owner’s Manual
Leaflet “USING THE UNIT SAFELY”
Alkaline battery (AA, LR6) x 3
Rubber foot x 4
Options (sold separately)
AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI cable: BMIDI-5-35
Size and Weight
Width
101 mm
4 inches
Depth
138 mm
5-7/16 inches
Height
63 mm
2-1/2 inches
Height (including rubber foot)
65 mm
2-9/16 inches
Weight
610 g
1 lb 6 oz
Weight (including battery)
680 g
1 lb 8 oz
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.


Shipping Dimensions

Weight 5 kg
Dimensions 150 × 150 × 70 mm
