MS45DR Electric Drum Monitor System

$489.00 inc GST

Brand: Yamaha

SKU: MS45DR
UPC: 4957812640732

The Yamaha MS45DR is a 2.1 channel electronic drum monitor system for home use.

This compact electric drum amplifier comprises a sub-woofer & 2 satellite speakers that integrate with your drum rack for a super convenient & great sounding electronic drum amplification solution.

4 AVAILABLE IN STORE

PAY IN FULL  or  PIPERS PAY-AFTER
4 Interest Free Payments of $122.25

Description

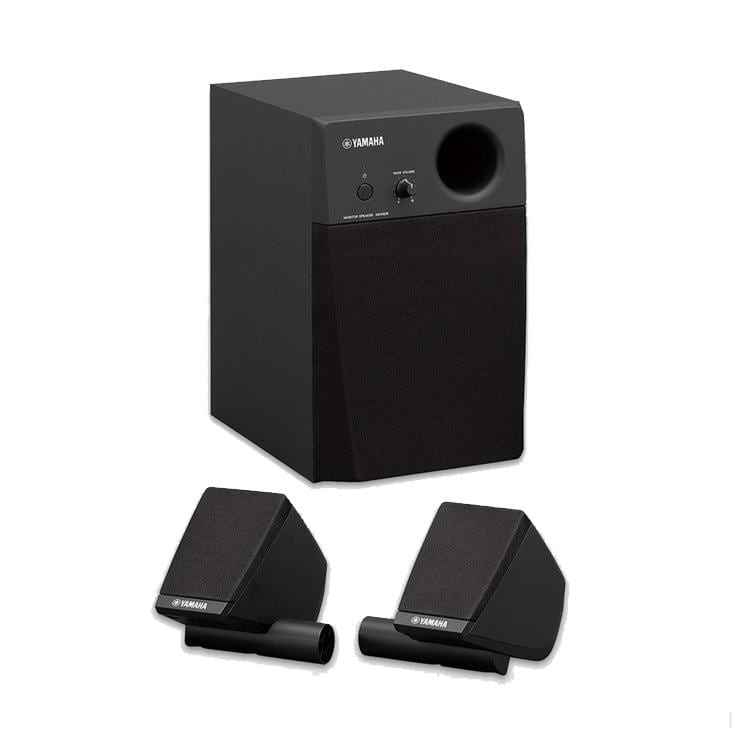

Yamaha MS45DR Drum Monitor Speaker System
A 2.1-channel monitor system for electronic drums, perfect for amplifying your electric drum kit at home.

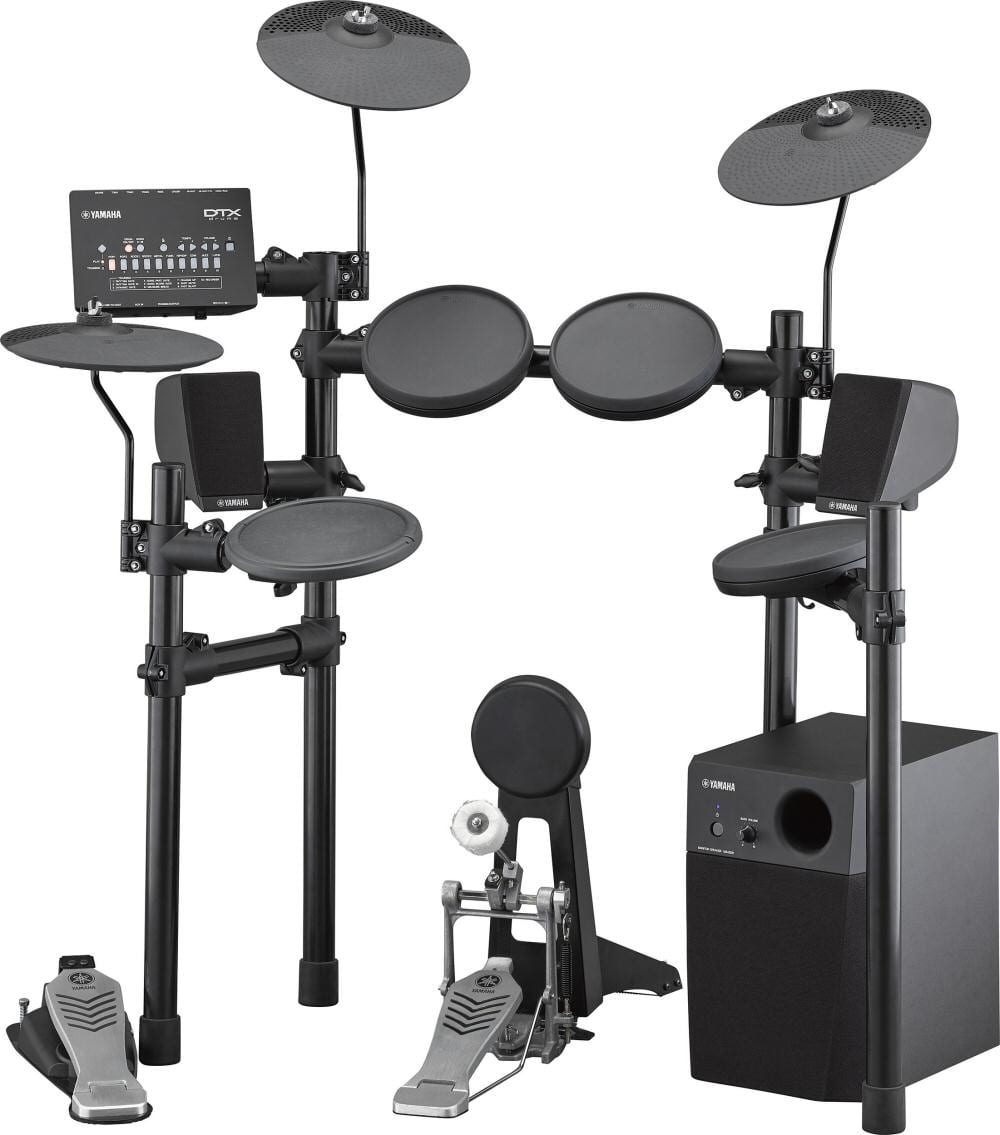

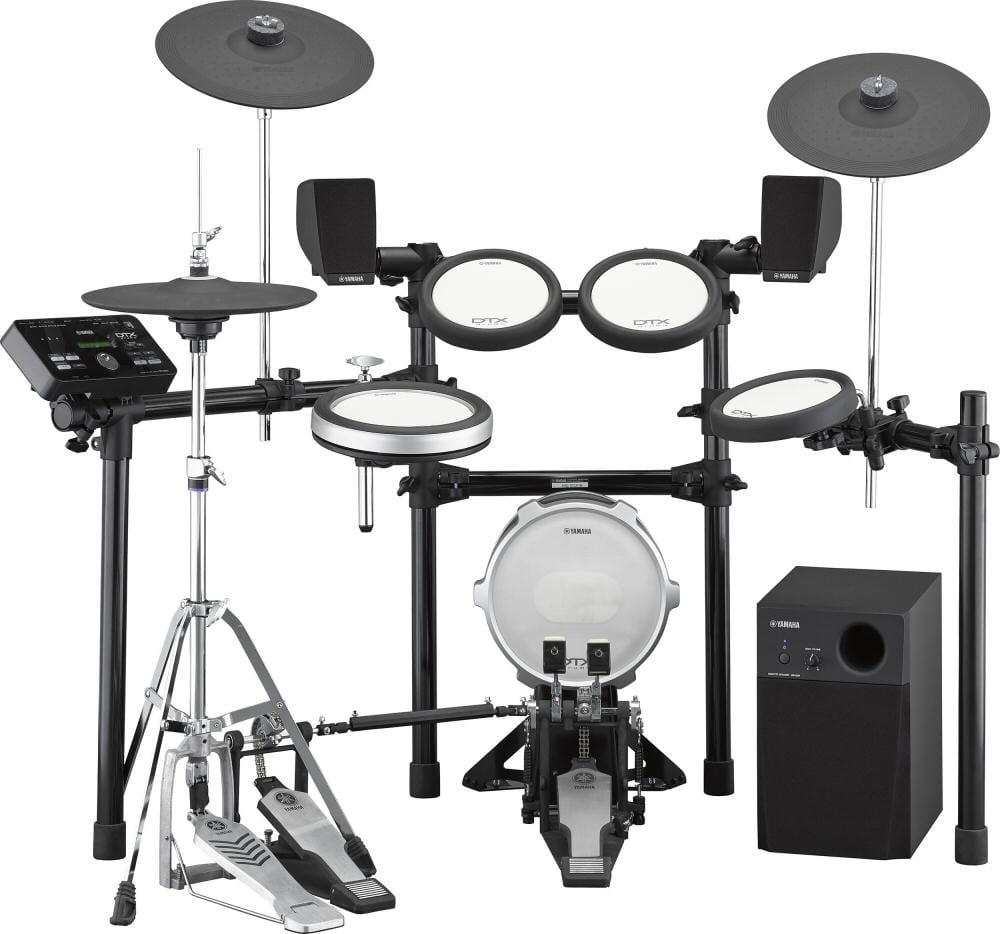

The system consists of left and right satellite speakers, designed to attach to the drum rack of your electronic drum kit with the included mounting system.
These speakers enable you to experience a realistic stereo sound that will make you feel like you are performing on an acoustic drum set!

This system is perfect for monitoring your digital drums at home, with 40 watts of power for the subwoofer & 20 watts of power for each of the two satellite speakers that will conveniently attach to any round pipe drum rack.



2.1 Channel monitor system for natural sound reproduction
The subwoofer, together with the midrange right and left satellite speakers, can reproduce a wide range of sounds, including everything from the resounding lows of the bass drum to the highs of the cymbals. Combined with stereo positioning, this generates a highly-realistic sound experience like that of acoustic drums. The MS45DR allows you to enjoy superb sound quality without the isolated feeling of headphones, providing open, acoustic drum impression you can share with family and friends.

20-W Satellite speakers compatible with 1.5-inch diameter racks
The 20-W satellite speakers come equipped with 2 cm, dome-shaped tweeters and 8 cm midrange speaker units, reproducing high-quality mid- to high-range sounds.

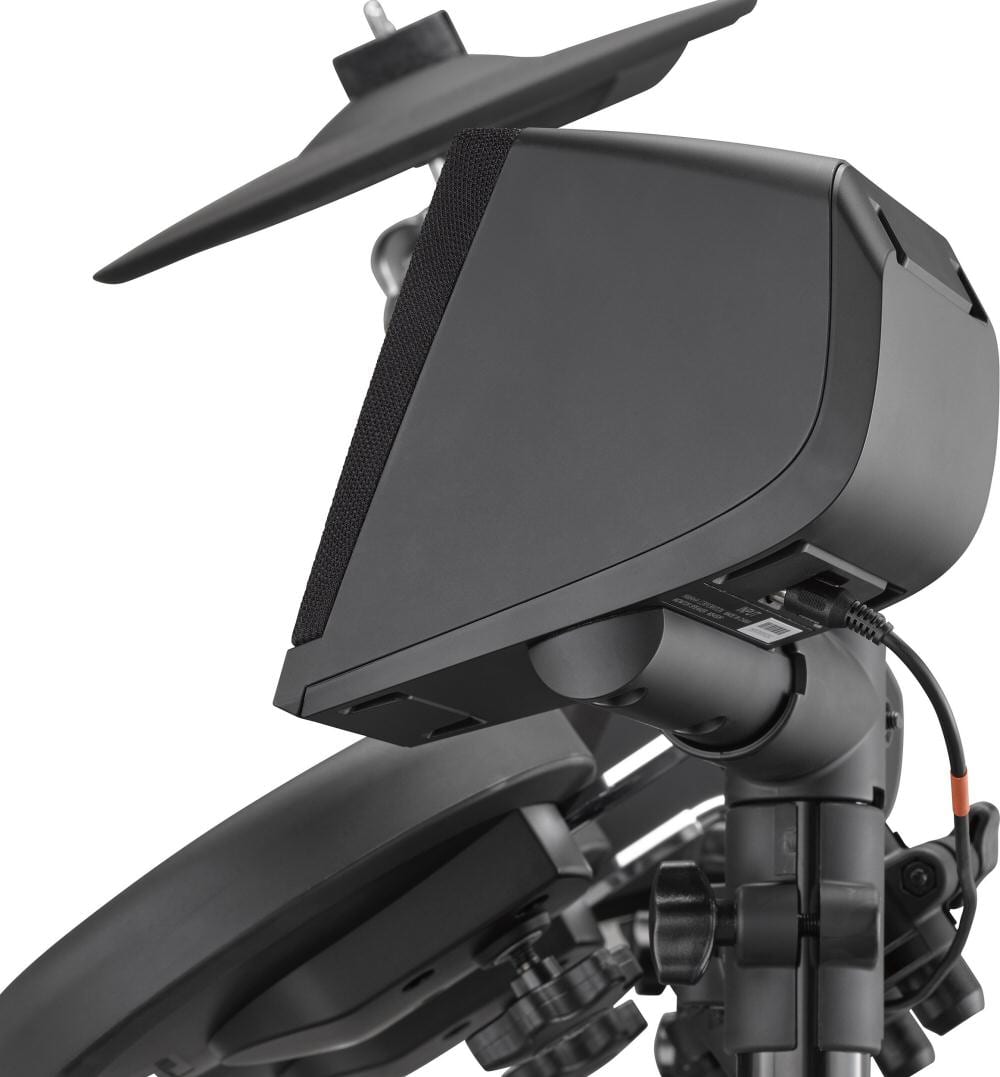

The satellite speakers can be mounted on electronic drum racks compatible with the 1.5-inch diameter pipes commonly incorporated into racks for electronic drum kits. Clamps have been added to the arms on the bottom, allowing for angle adjustment of the speakers.


20-W Subwoofers that produce rich bass
The cone-shaped subwoofer speaker units reproduce accurate, low-range sounds from the bass drum and floor tom.

Easy volume adjustment

In addition to a master volume that allows you to adjust the overall volume, a bass volume control on the subwoofer allows you to adjust the volume of the subwoofer alone, with simple controls that let you shape the sound.


Cables included for easy setup
Included cables easily connect the MS45DR to electronic drum trigger modules. This simple system does not require complicated wiring, which allows you to complete an electronic drum monitor environment by attaching one cable each to the trigger modules, subwoofers, amplifier units and satellite speakers.


* If using the DTX402 series or any other electronic drum product with only one output jack, you will need a Y cable (phone (male) phone (female) ×2) to connect to the trigger module’s phone jack (standard phone jack).


MS45DR
A monitor system for electronic drums compatible with 1.5-inch diameter pipes.
  • 2.1-channel stereo monitor system for highly-realistic sound
  • 20-W, mountable satellite speakers and subwoofer
  • Cables included



Shipping Dimensions

Weight 12 kg
Dimensions 600 × 400 × 400 mm

  MS45DR
Specifications
Power Consumption 24 W
Power Supply 100 V-240 V~, 50/60 Hz
Output power Satellite speakers 20 W + 20 W (2 kHz, 4 Ω)
Subwoofer 20 W (60 Hz, 8 Ω)
Frequency response Satellite speakers / Subwoofer speaker 40–20000 Hz (-10 dB)
Speaker unit Satellite speakers (Tweeter) 2 cm (0.8″) dome (5 Ω)
Satellite speakers (Midrange) 8 cm (3″) cone (4.5 Ω)
Subwoofer 16 cm (6.5″) cone (8 Ω)
Dimensions (W x H x D) Satellite speakers 110 × 183 × 138 mm (4 5/16″ × 7 3/16″ × 5 7/16″ ) not including holder
Subwoofer 221 × 351 × 343 mm (8 11/16″ × 13 13/16″ × 13 1/2″)
Weight Satellite speakers 1.0 kg (2 lb, 3 oz) × 2
Subwoofer 6.5 kg (14 lb, 5 oz)
Other
Accessories Pipe clamps* (2), combination cable (8 pin mini DIN to phone and RCA pin) (1), cable band (1), power cord (1), Owner’s Manual (1) *Can be attached to straight vertical pipes of 1.5-inch (38.1-mm) diameter.

Shipping Dimensions

Weight 12 kg
Dimensions 600 × 400 × 400 mm
