BOSS WL-20 Wireless Systems

$369.00 inc GST

Brand: BOSS

Wireless Freedom Made Easy for guitars, basses and other instruments too.

PAY IN FULL  or  PIPERS PAY-AFTER
4 Interest Free Payments of $92.25

Description

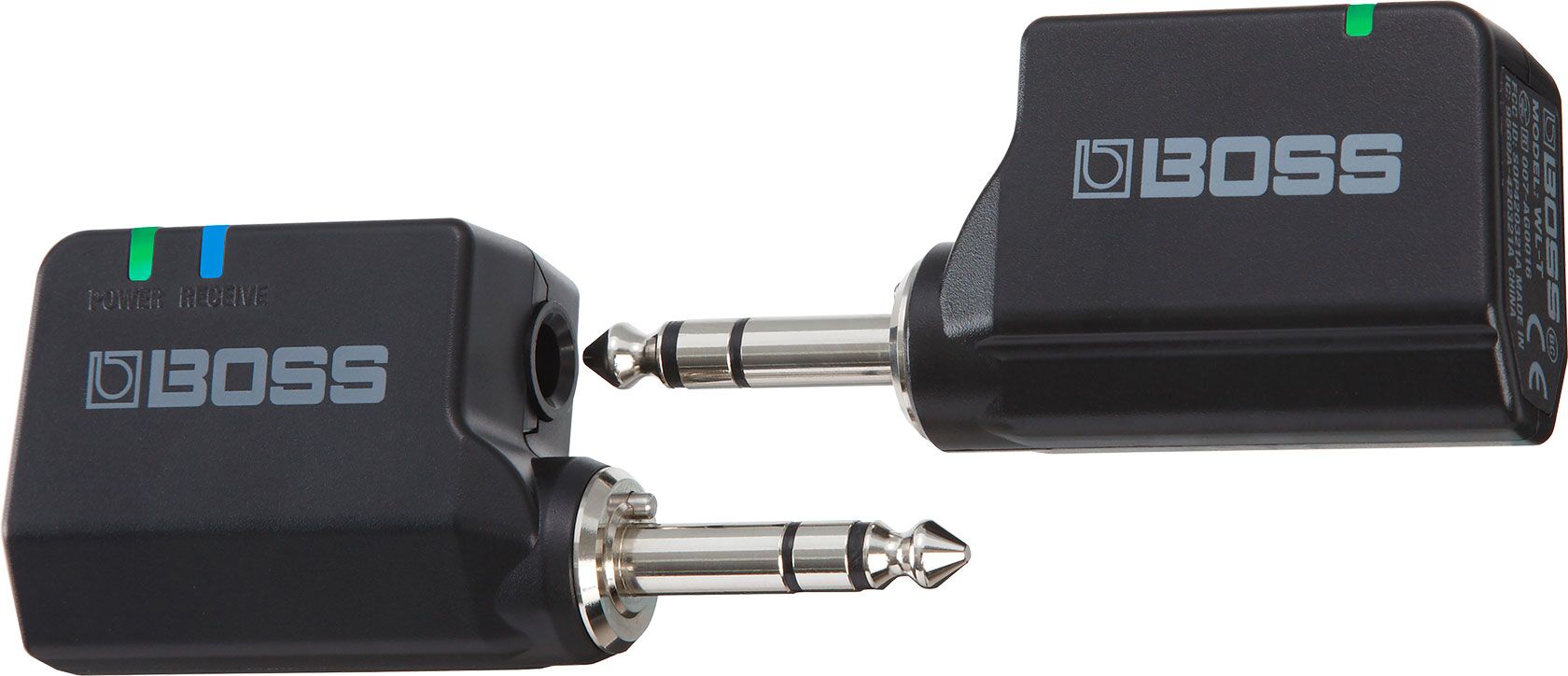

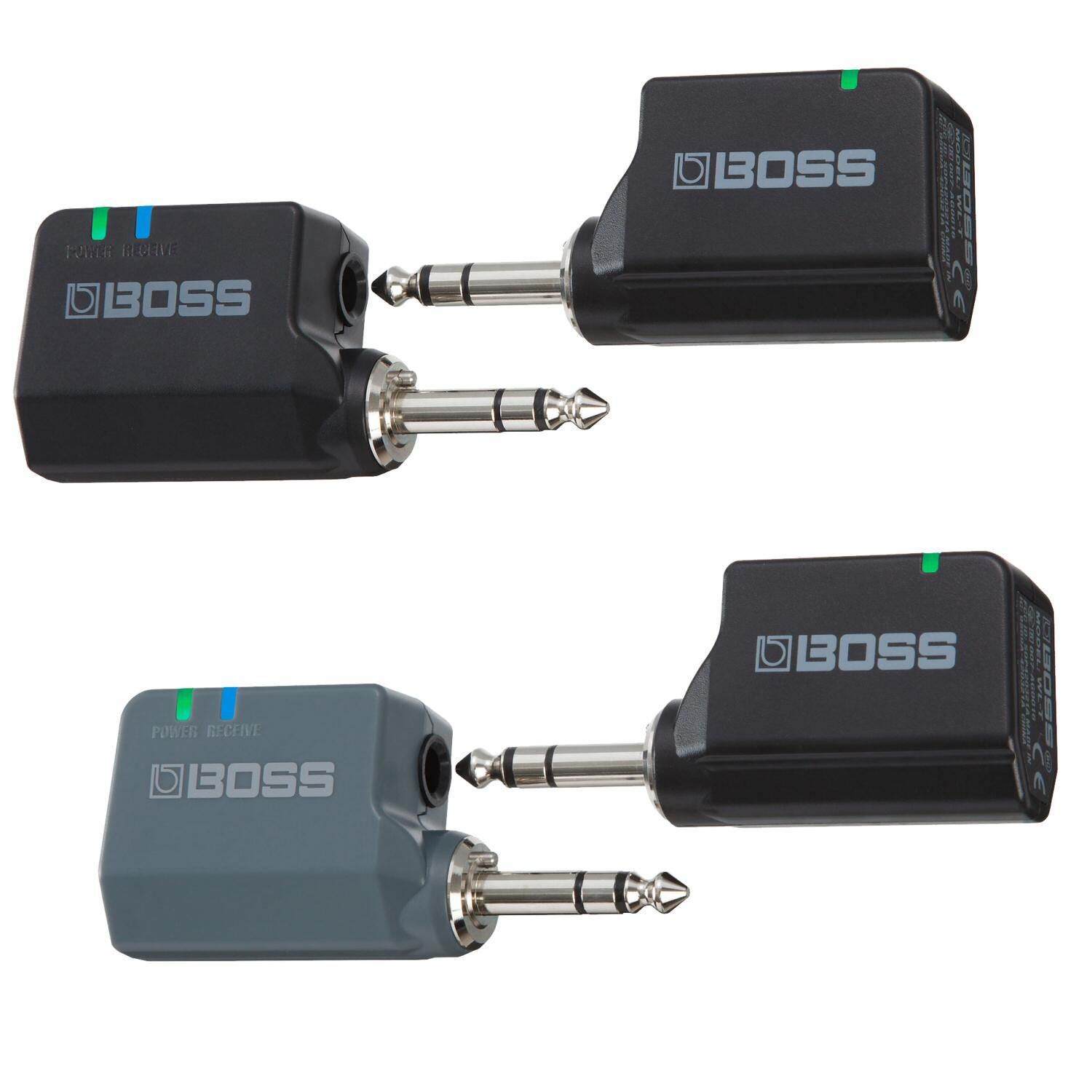

BOSS WL-20 Wireless Systems

BOSS WL-20 Wireless Systems for guitar, acoustic, bass and other instruments make performing so easy! Have you always dreamed about going wireless with your instrument, but were put off by the complicated setup, tone loss, and bulky adds-ons? If so, the WL-20 series is for you! Driven by new lightning-fast BOSS tech, these ultra-compact music tools deliver premium sound and plug-and-play operation that completely eliminates all the hassles normally associated with wireless systems.

Once you experience the easy wireless independence provided by the WL-20 series, you’ll never go back to using a standard cable again! With no worries about cable management, you’re able to move about freely while playing at home, jamming with friends, and performing on stage. During sound check at a gig, you can listen to your tone out front and dial in the best sound for your audience. And with the ability to roam and interact with other musicians, your live shows will be more dynamic and entertaining than ever.

*Compatible guitars

  • Plug-and-play wireless systems for guitar, bass, and other electronic instruments
  • No complicated setup required—simply dock the transmitter and receiver together for about 10 seconds to set the optimum wireless connection
  • Newly developed BOSS technology delivers premium audio performance with rock-solid stability, ultra-low latency (2.3 ms), and 50-foot/15-meter range (line-of-sight propagation)*
  • Built-in rechargeable batteries provide up to 12 hours of continuous playing time**
  • Simple charging with a standard USB adaptor (5 V/500 mA or greater)
  • Cable tone simulation reproduces the natural capacitive effect of a 10-foot/3-meter guitar cable (WL-20 model only)
  • Spare WL-T Transmitter available separately* The transmission range may vary due to local conditions.
    ** A full charge provides 12 hours of time for the transmitter and 7 hours for the receiver.

Lightning-Fast BOSS Wireless Technology

Equipped with high-performance BOSS wireless technology that debuted in the Katana-Air wireless guitar amp, the WL-20 series delivers exceptional sound quality with wide dynamic range. Working in the 2.4 GHz frequency band, the optimum channel is set automatically to ensure rock-solid audio performance with absolutely no drop-outs. And with ultra-low latency of just 2.3 ms, you’ll always enjoy great playing feel with no lag whatsoever. Up to 14 BOSS wireless systems can be used simultaneously in one space. Therefore, it allows multiple musicians to enjoy BOSS wireless freedom at the same time.*

*Environmental conditions may affect the actual number of simultaneous systems available.

Plug In and Rock

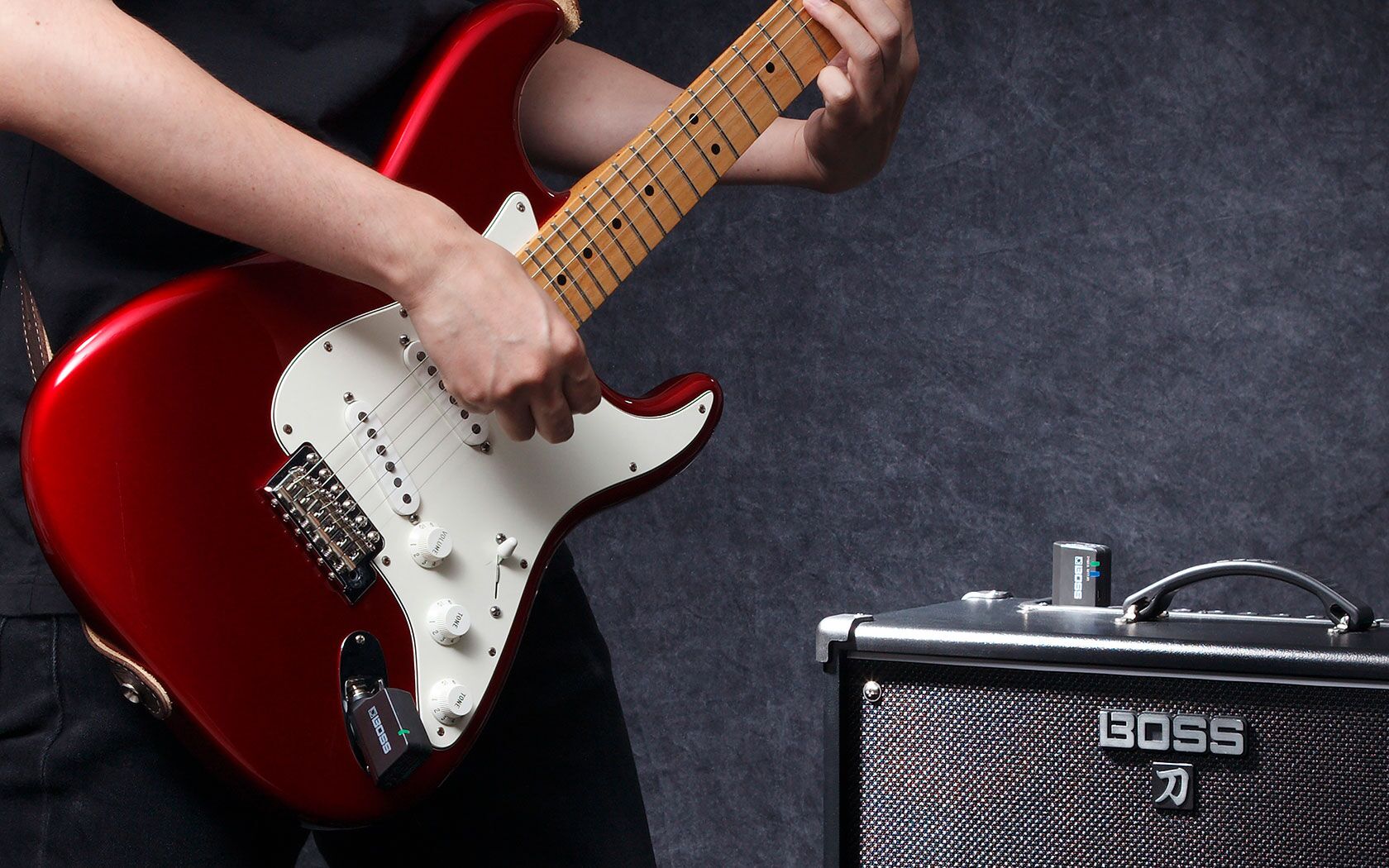

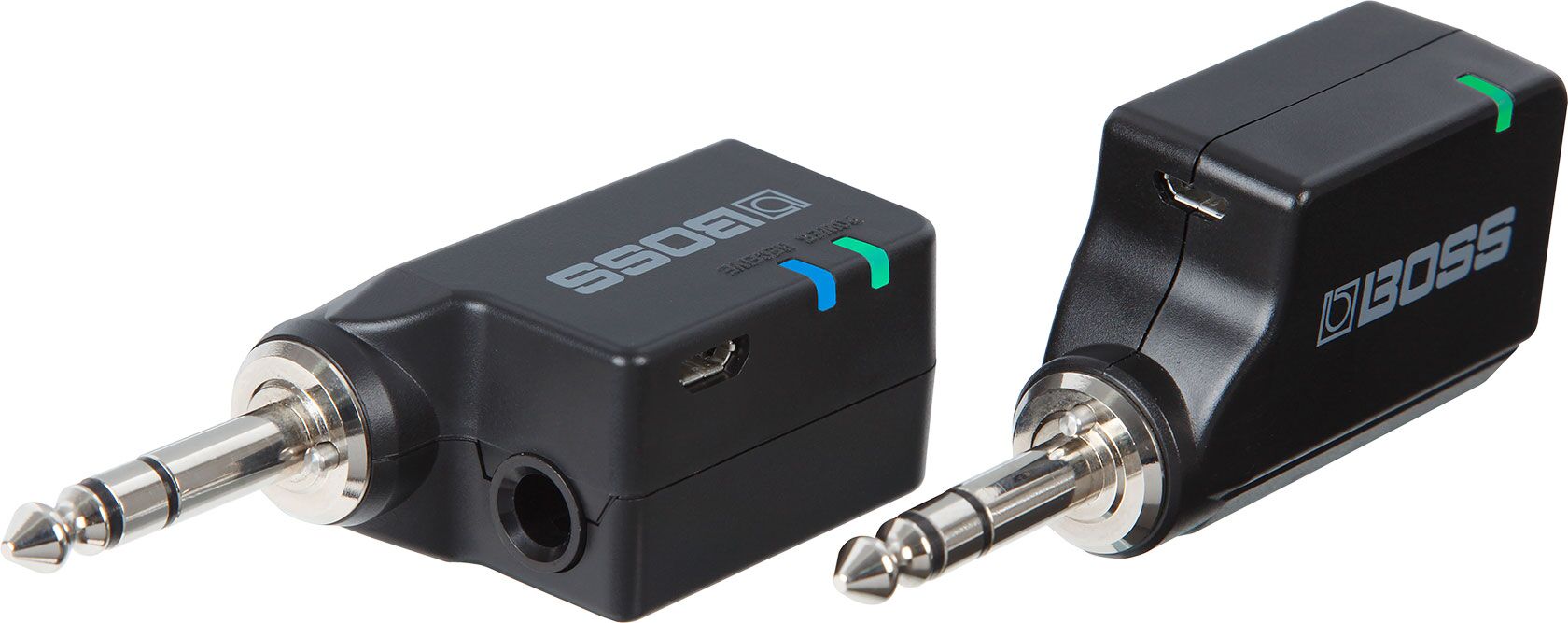

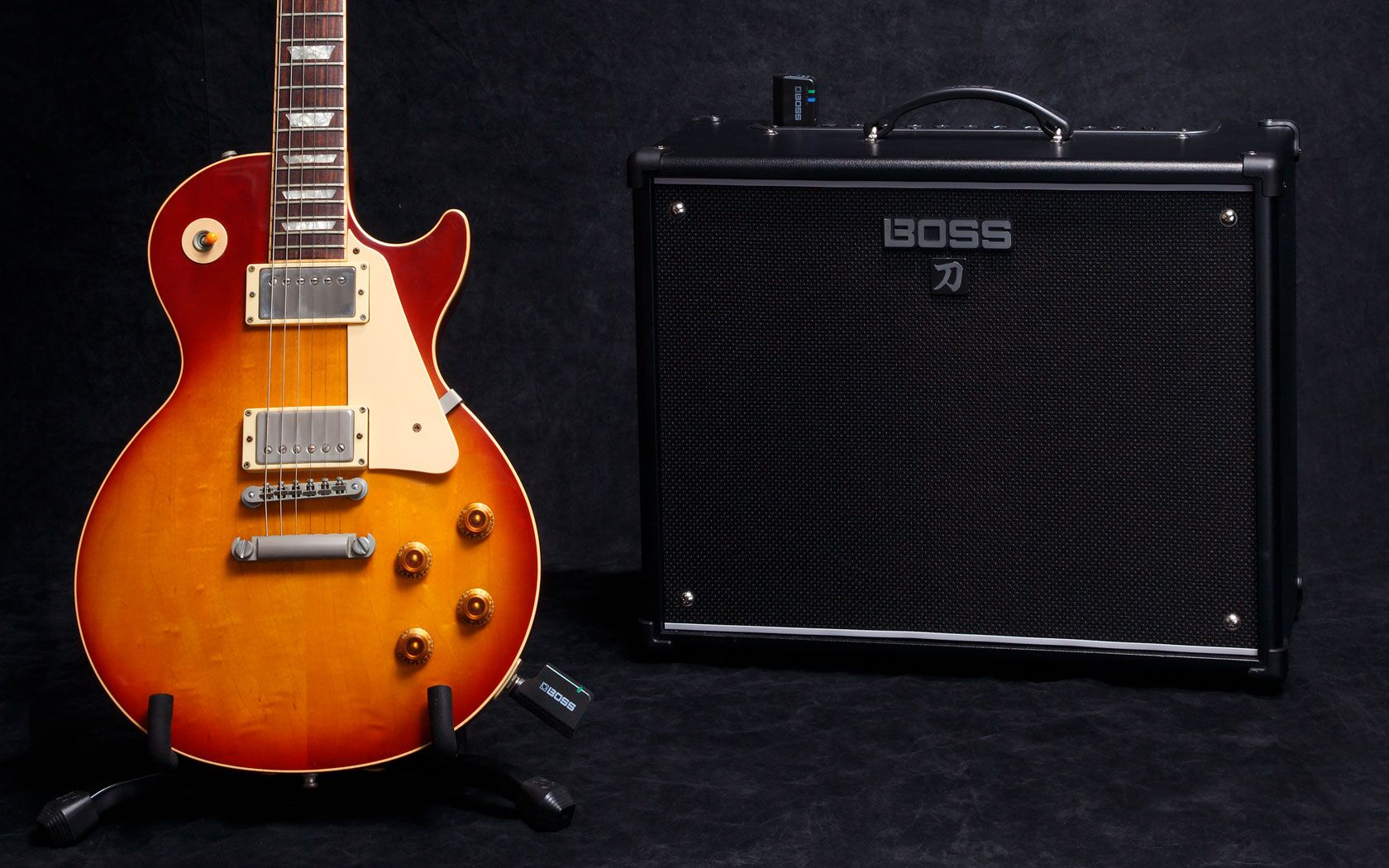

A WL-20 system is literally as simple to use as a standard guitar cable. The small transmitter plugs into your instrument, while a matching receiver plugs into a pedal or amp. That’s it!

Automatic Wireless Setup

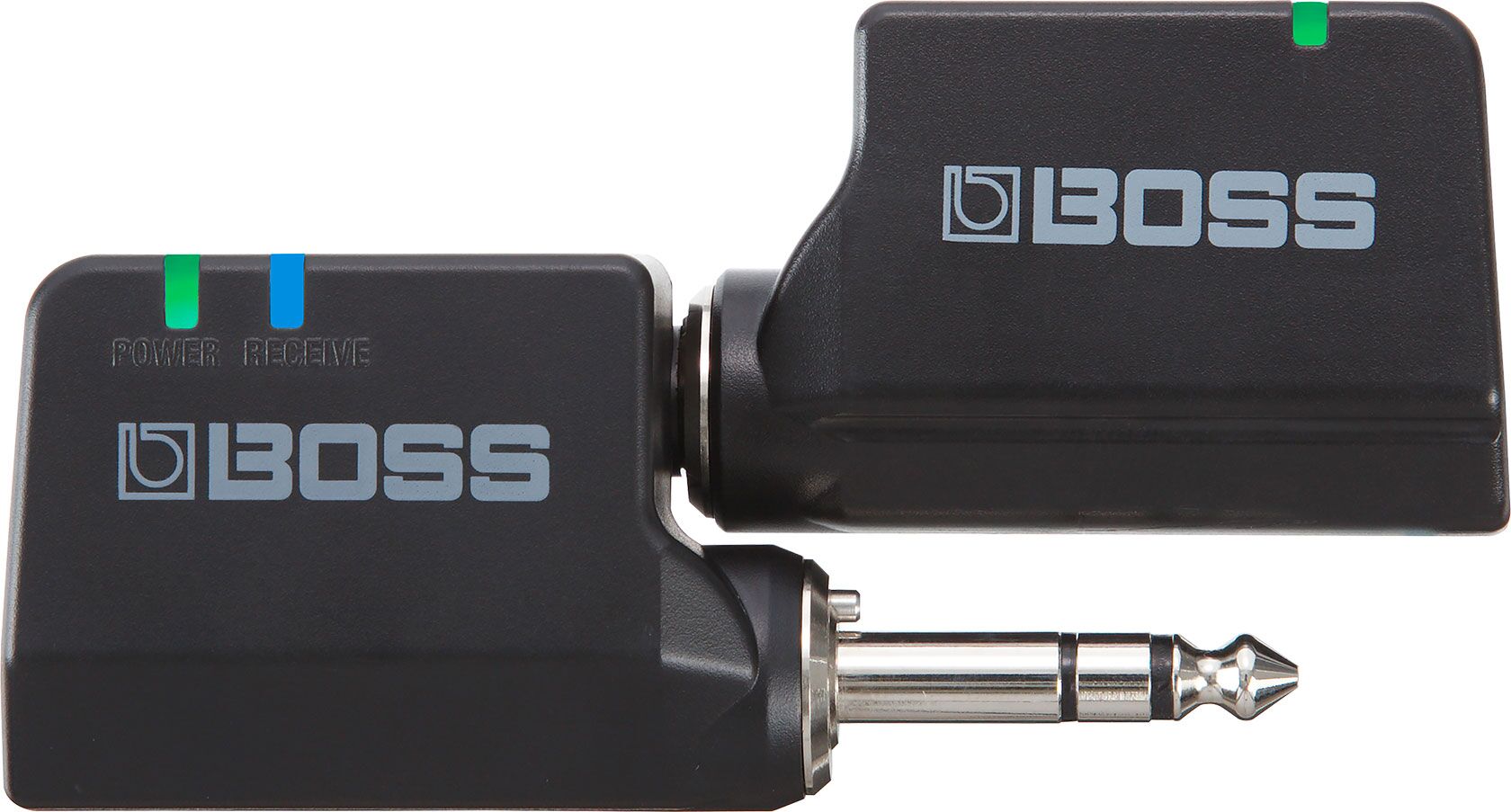

With the WL-20 series, there’s no fiddly channel setup required. Just dock the transmitter and receiver together for about 10 seconds to automatically set the optimum connection.

Easy Charging via USB

When docked, the built-in batteries in the transmitter and receiver can be charged together with a standard USB adaptor. (5 V/500 mA or higher) That’s the same type used with the latest smartphones and tablets. The transmitter and receiver can also be charged separately, and a micro USB cable is included for charging.

WL-20: Built-In Cable Tone Simulation

If you play a guitar or bass with standard passive pickups, the WL-20 model is probably your best choice. This is because it includes built-in cable tone simulation. This reproduces the natural capacitive effect that’s introduced when using a 10-foot/3-meter guitar cable with passive pickups. This effect rolls off the treble very slightly, giving you the warmth you’re used to hearing with a normal cable.

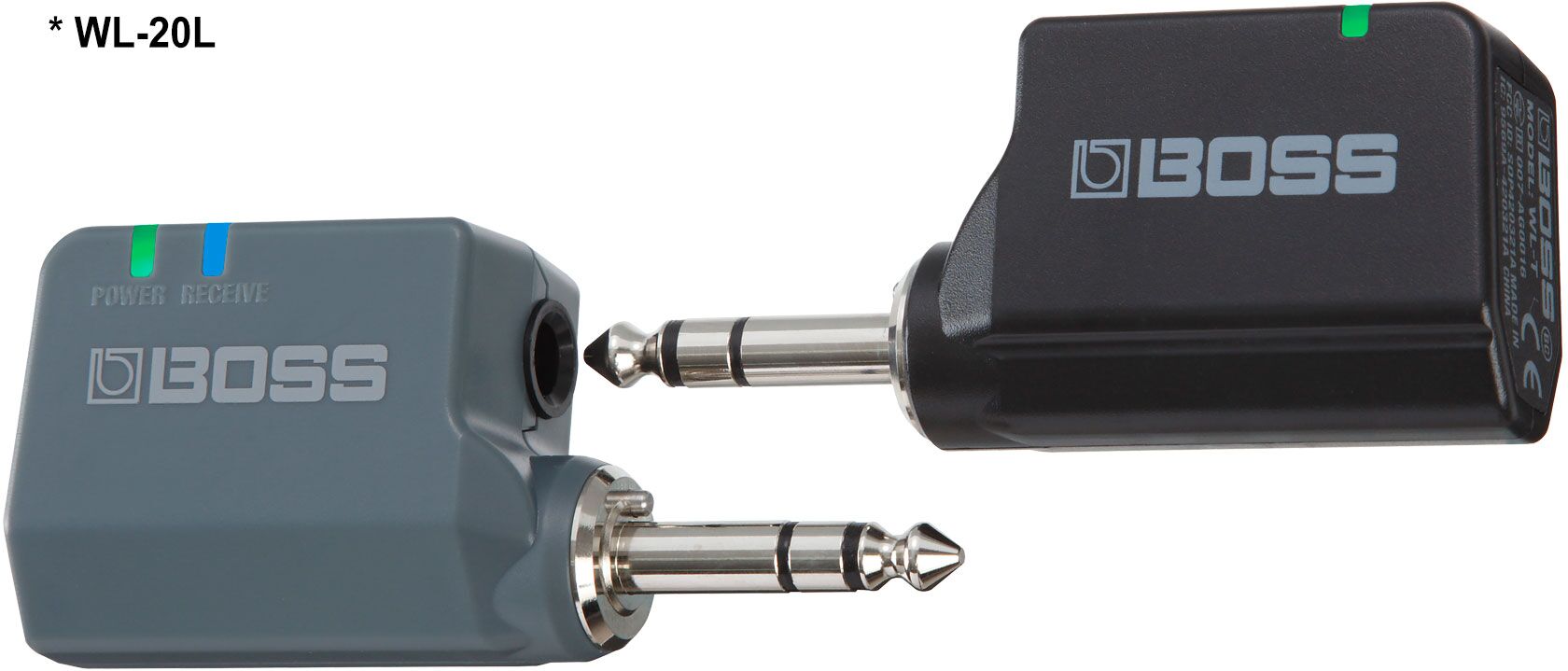

WL-20L: No Cable Tone Simulation

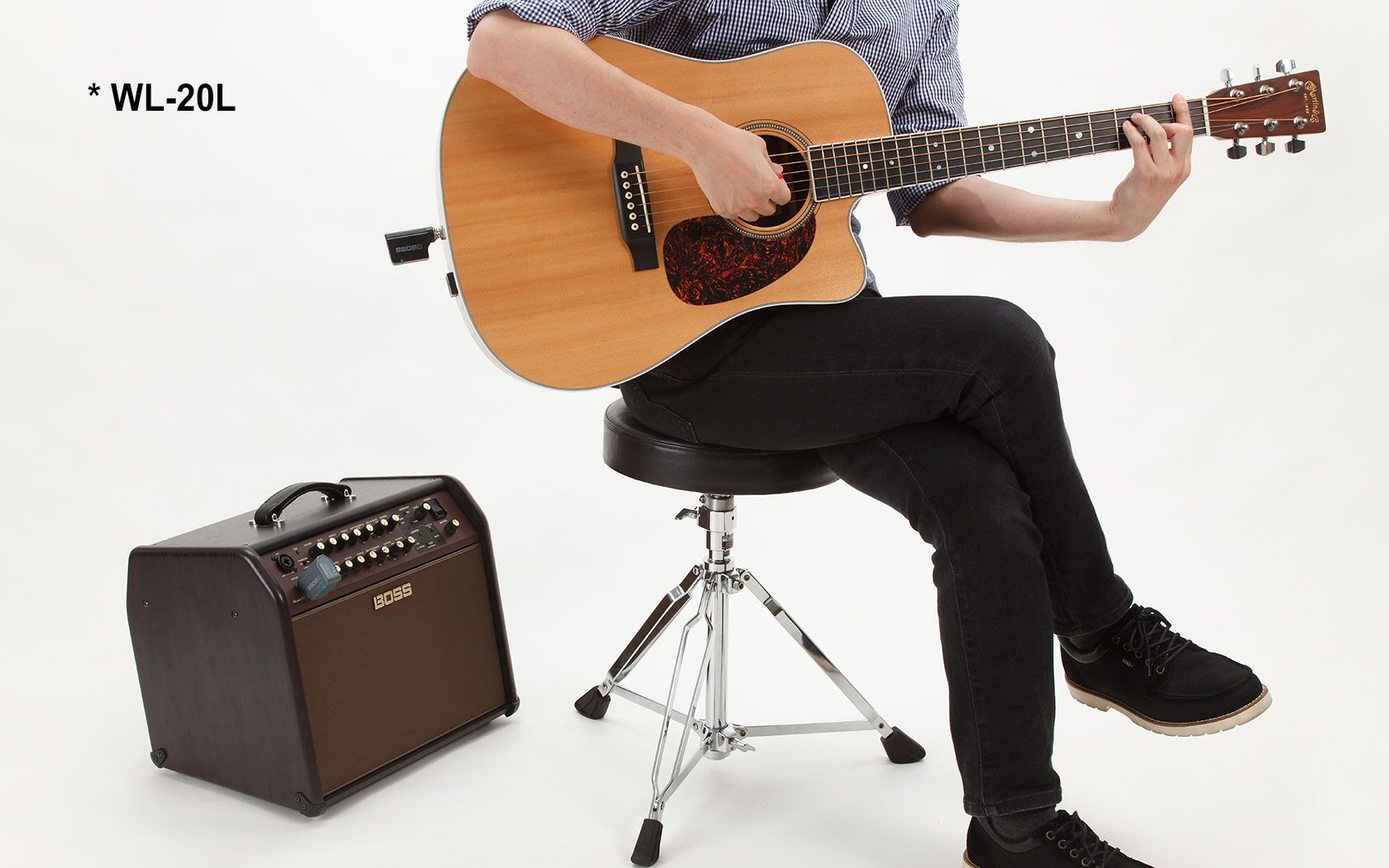

The WL-20L model is functionally identical to the WL-20, with the exception that it eliminates cable tone simulation. This makes it the best choice for instruments where cable capacitance has little or no effect on the tone. So, it’s the choice for an acoustic/electric guitar with an onboard preamp, a guitar or bass with active pickups, or a line-level device like a keytar or Roland’s Aerophone digital wind instrument. The WL-20L also works great with passive pickups if you don’t need the subtle treble roll-off provided by cable tone simulation.

WL-50: A BOSS Wireless System for Your Pedalboard

If you’re looking to bring wireless freedom to your pedalboard, check out the WL-50 too. It’s equipped with the same high-performance wireless tech found in the WL-20 and WL-20L. But the stompbox-size WL-50 features an integrated transmitter dock, two cable tone simulation options, and a DC output for distributing power to one or more pedals.

Shipping Dimensions

Weight 0.23 kg
Dimensions 147 × 93 × 52 mm

Specifications (RECEIVER)
Wireless Format
BOSS proprietary digital audio format
Wireless carrier frequency
2.4 GHz
Compatible Channels
14
(May vary due to local conditions)
Transmission Range
50 feet line-of-sight
(May vary due to local conditions)
Latency
2.3 ms
Dynamic Range
110 dB or greater
Frequency Response
20 Hz–20 kHz
Nominal Output Level
-10 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Indicators
POWER
RECEIVE
Connectors
Output plug: 1/4-inch TRS phone type
TRANSMITTER jack: 1/4-inch TRS phone type
DC IN 5 V port: USB Micro-B type
Power Supply
Rechargeable lithium-ion battery
Supplied from the DC IN 5 V port
Current Draw
During wireless operation: 60 mA
While charging: 500mA
Battery charging time
Charging only the receiver: Approximately 3 hours
Charging simultaneously with the transmitter: Approximately 4 hours
Expected battery life under continuous use
Approximately 7 hours
* These figures will vary depending on the actual conditions of use.
Accessories
Owner’s Manual
Leaflet USING THE UNIT SAFELY
Transmitter
Micro USB cable for charging (*1)
*1: Use a standard USB AC adaptor (5 V/over 0.5 A) for charging.
Size and Weight(RECEIVER)
Width
87 mm
3-7/16 inches
Depth
25 mm
1 inches
Height
38 mm
1-1/2 inches
Weight
60 g
3 oz
Specifications (TRANSMITTER (WL-T))
Nominal Input Level
-10 dBu (1 M ohm)
Indicator
BATTERY
Connectors
Input plug: 1/4-inch TRS phone type
DC IN 5 V port: USB Micro-B type
Power Supply
Rechargeable lithium-ion battery
Supplied from the DC IN 5 V port
Current Draw
350mA
Battery charging time
Approximately 3 hours
Expected battery life under continuous use
Approximately 12 hours
* These figures will vary depending on the actual conditions of use.
Size and Weight (TRANSMITTER (WL-T))
Width
87 mm
3-7/16 inches
Depth
22 mm
7/8 inches
Height
36 mm
1-7/16 inches
Weight
43 g
2 oz
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
