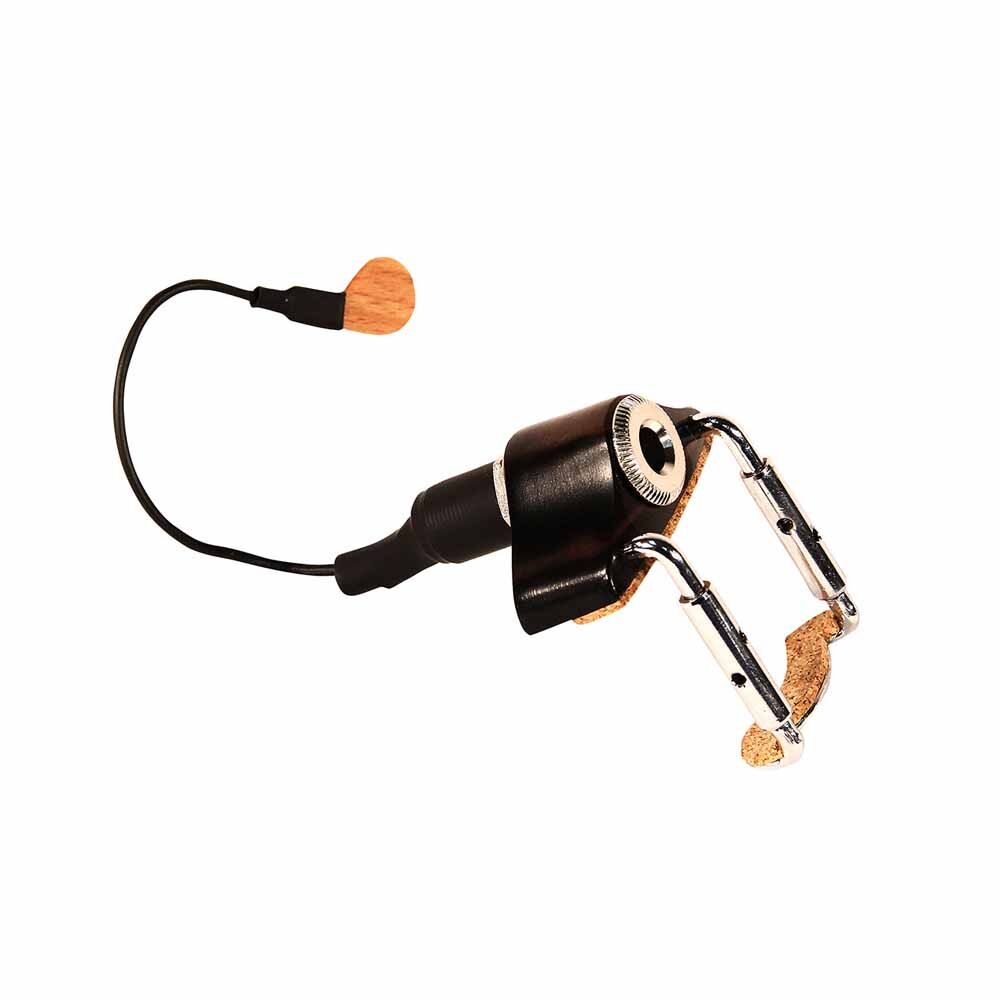

The KNA VV-3 violin pickup offers clean and clear acoustic sound with easy installation without modification to the instrument. The lightweight low-profile ebony jack housing makes the unit ideal for a performing musician.
Features:
Safe install

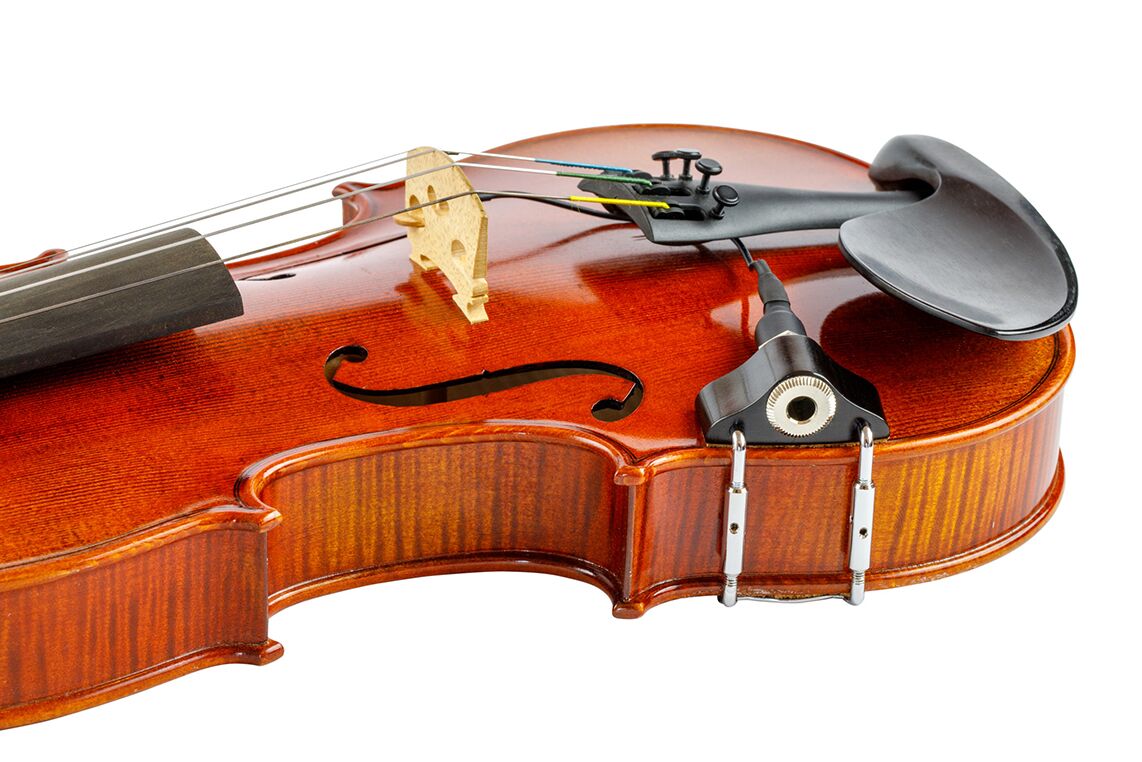

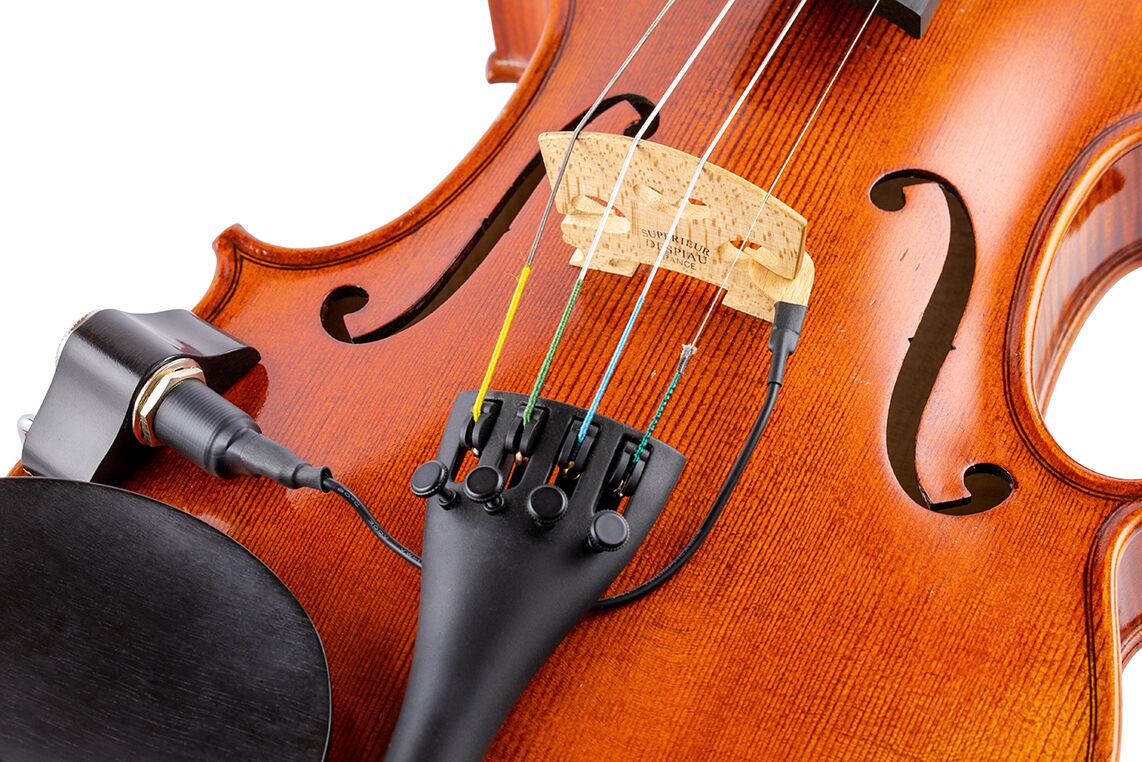

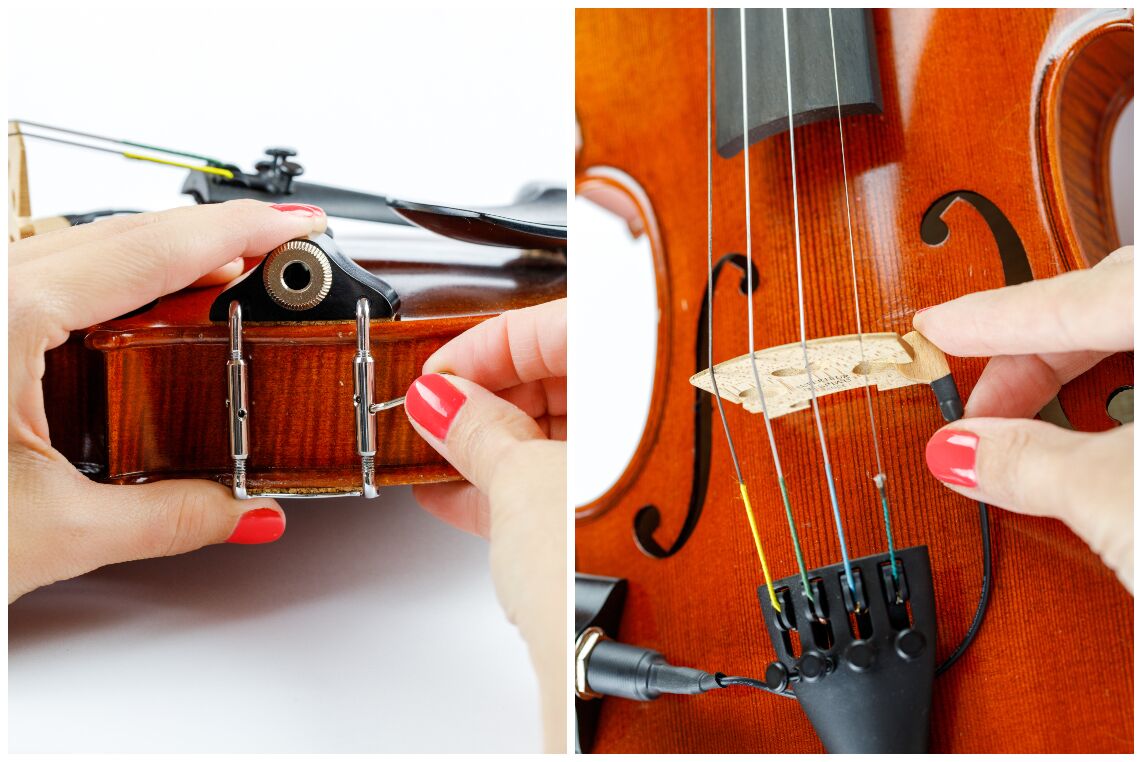

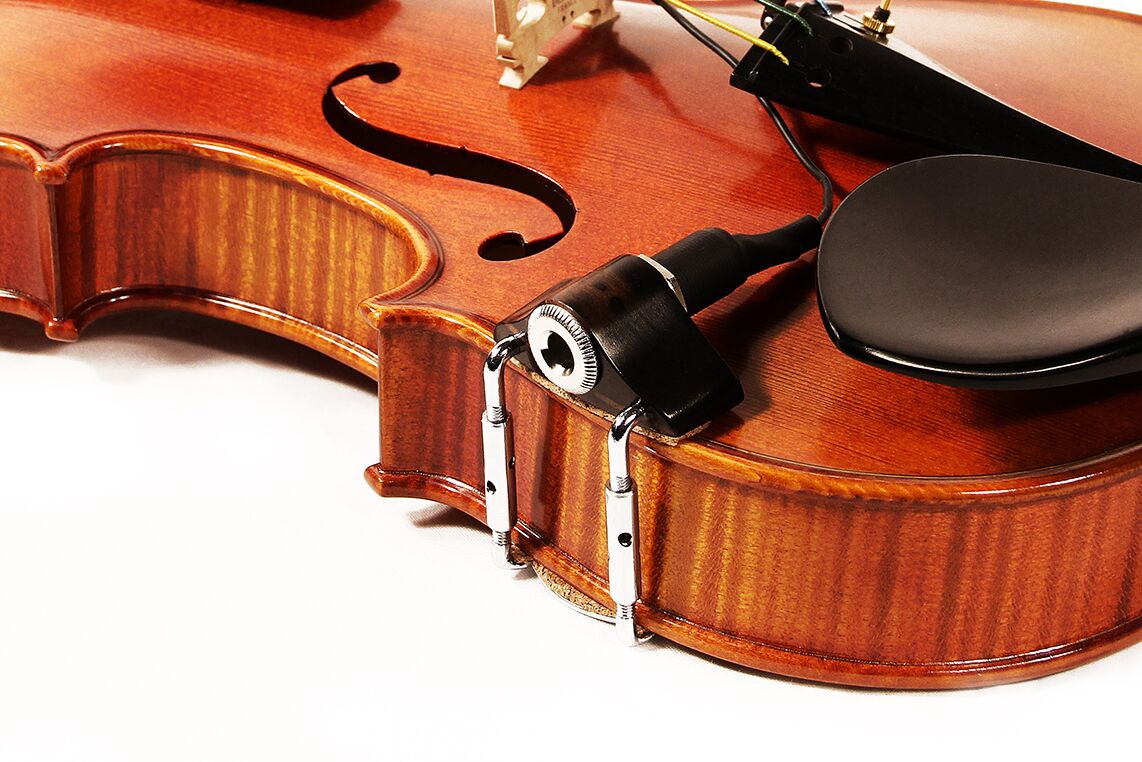

Just mount the pickup jack housing onto the lower bout, just below the waist on the 4th (G) string side of your instrument and adjust the height of the barrel clamps to tighten the pickup to the instrument.
Wooden housing and sensor
The jack housing is encased in elegant and stylish ebony and the piezo sensor has a lightweight wooden casing to achieve maximum tonal sensitivity and transmission.
Natural sound
VV-3V has a passive design that reproduces the natural sound of the instrument with no need for a battery.
Protection for your instruments finish

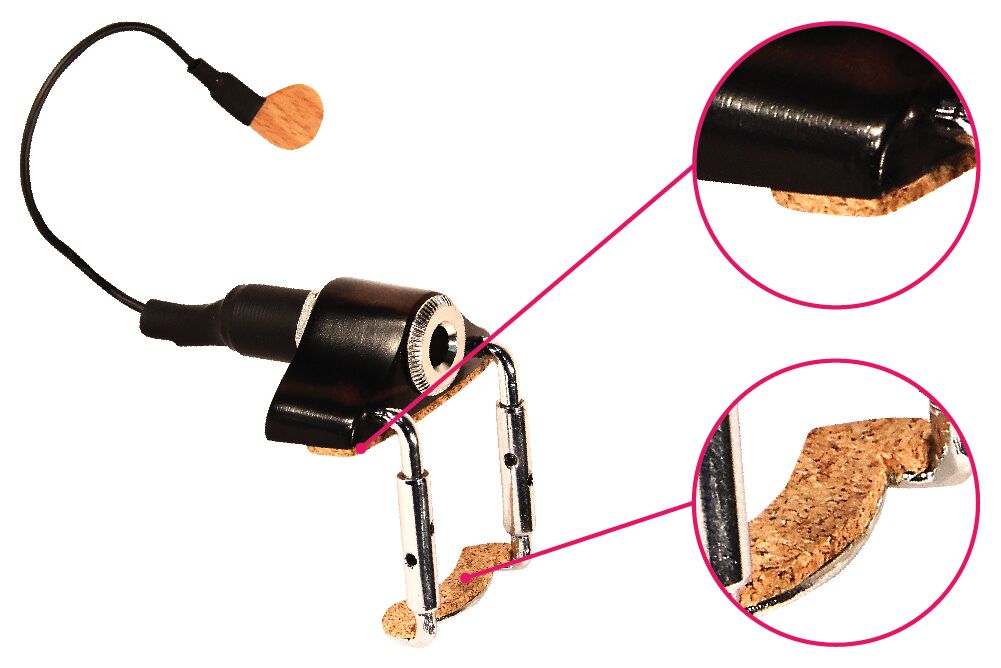

The adjustable clamps have protective cork at each point of contact to prevent damage to your instrument’s finish.
Great compatibility with many sizes of violin and viola

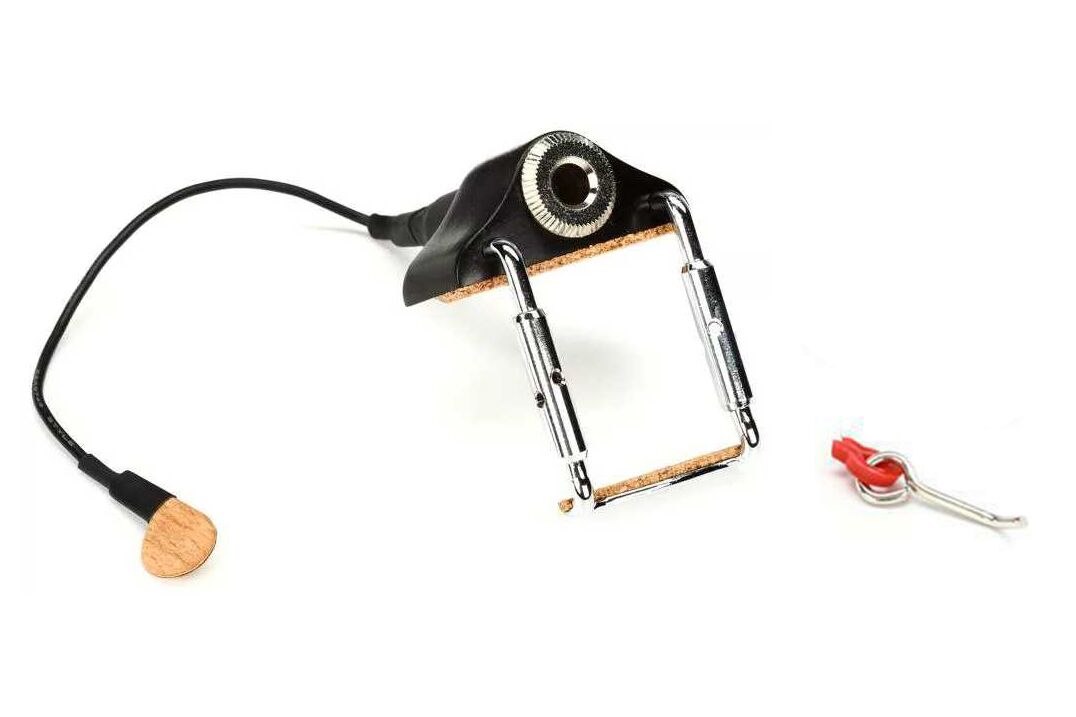

The pickup comes with universal size barrels to attach the jack housing equally well to both violin and viola bodies with just a few turns.
Shipping Dimensions
Weight
0.5 kg
Dimensions
160 × 70 × 70 mm
Specifications
Weight
36gr / 1.27
Wood
Solid ebony
Maximum Impedance
1500 Ω
Measurements
Specified part
Letter
Size in MM (from*)
Size in MM (to*)
Size in INCH (from*)
Size in INCH (to*)
Pickup sensor side diameter
a
12,0
12,1
0,472
0,476
Pickup sensor with extention diameter
b
12,7
12,8
0,500
0,504
Pickup sensor bottom diameter
c
12,0
12,1
0,472
0,476
Lead wire length
d
108,0
–
4,252
–
Jack housing length
e
43,9
44,0
1,728
1,732
Jack housing height
f
20,4
20,5
0,803
0,807
Mounting bracket and 23mm barrel tightened
g
32,0
–
1,260
–
Platform length
h
33,8
–
1,331
–
Pickup sensor thickness
i
1,9
2,0
0,073
0,079
Sensor to jack housing plug length
j
38,1
38,2
1,500
1,504
Jack housing width
k
17,6
17,7
0,693
0,697
Mounting bracket and 29mm barrel untightened
l
41,0
42,0
1,614
1,654
