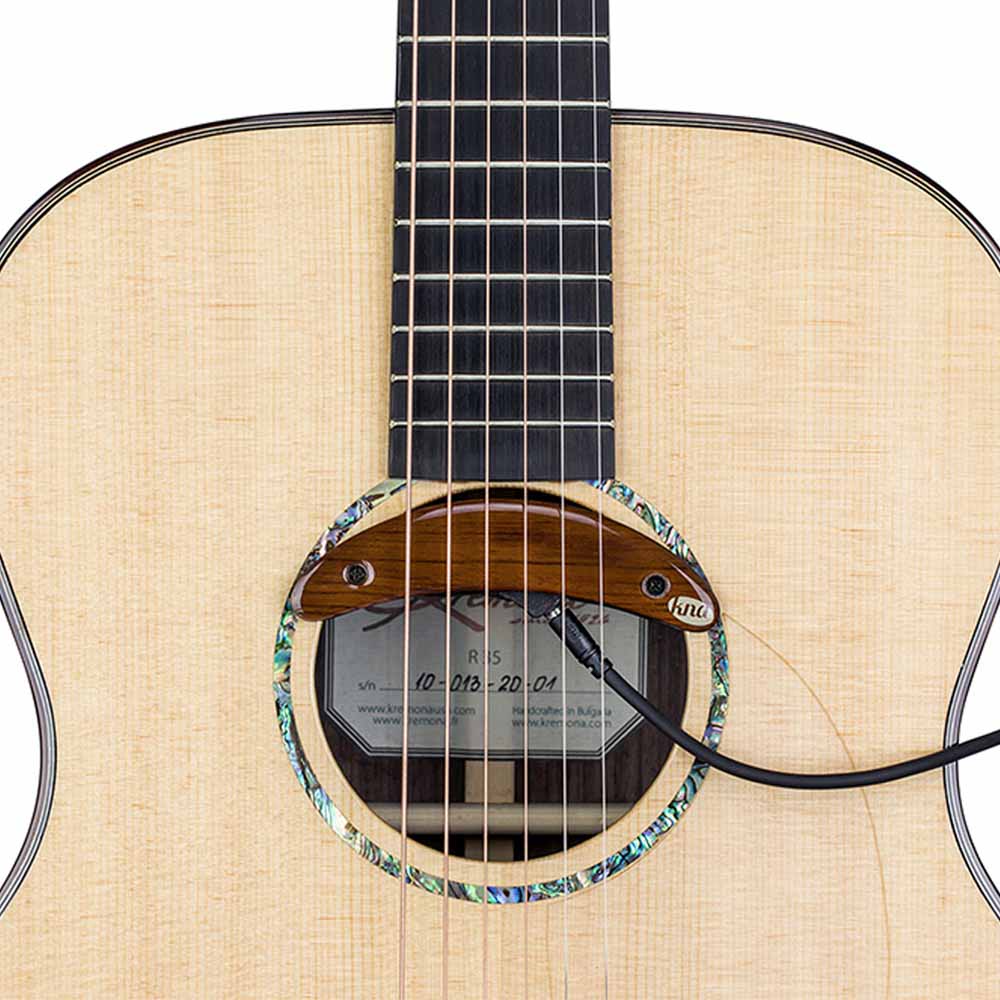

The KNA SP-1 Soundhole Pickup easily allows you to plug your steel string acoustic guitar into an amplifier. This pickup provides a warmer tone compared to other soundhole pickups. It’s compact design tucks away nicely near the fretboard, and blends in with its wooden finish.
Features:

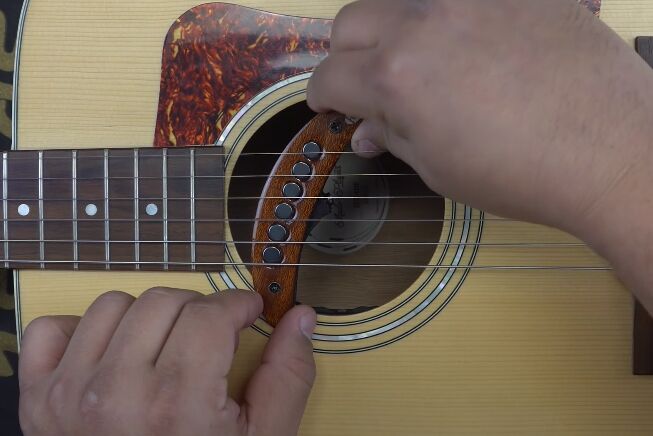

Installs with no modification
Simply drop this pickup into the soundhole of the guitar and gently tighten the mounting screws until it is firmly mounted to the top.

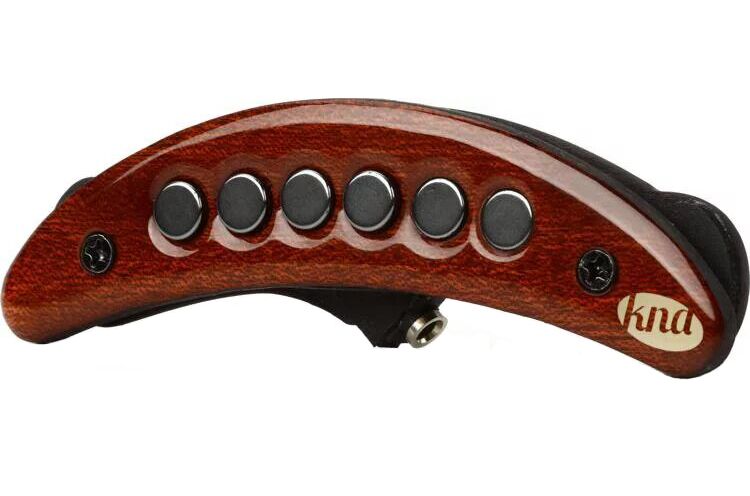

Wood case
The magnets are encased in elegant and stylish mahogany. The lightweight assembly offers maximum tonal sensitivity.

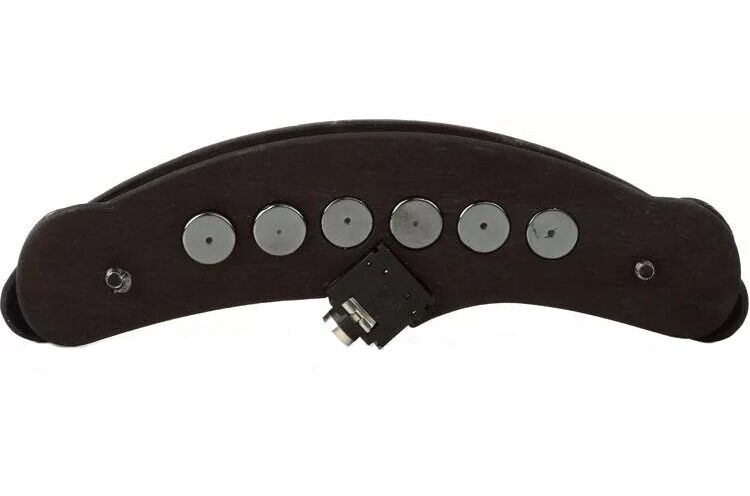

Ferrite magnets
Employing the fast and articulate attack of ferrite magnets, the SP-1 amplifies the sound of your acoustic with a dynamic blend of clarity and balance.

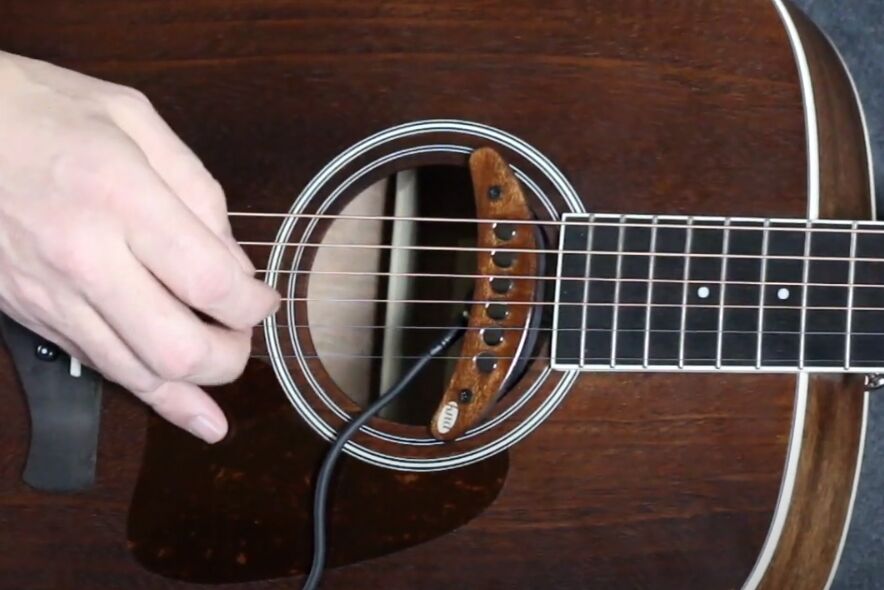

Natural sound
SP-1 has a passive design that reproduces the natural sound of the instrument with no need for a battery.

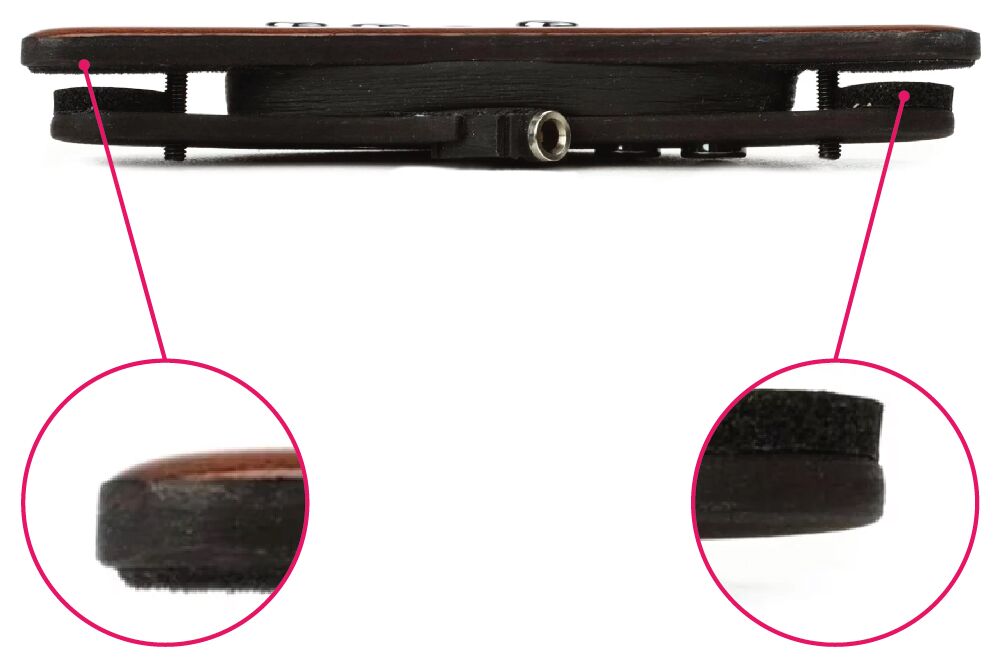

Protection for your guitar’s finish
Padding on the upper and lower clamps prevent scratching, cracking, and other damage around the soundhole.

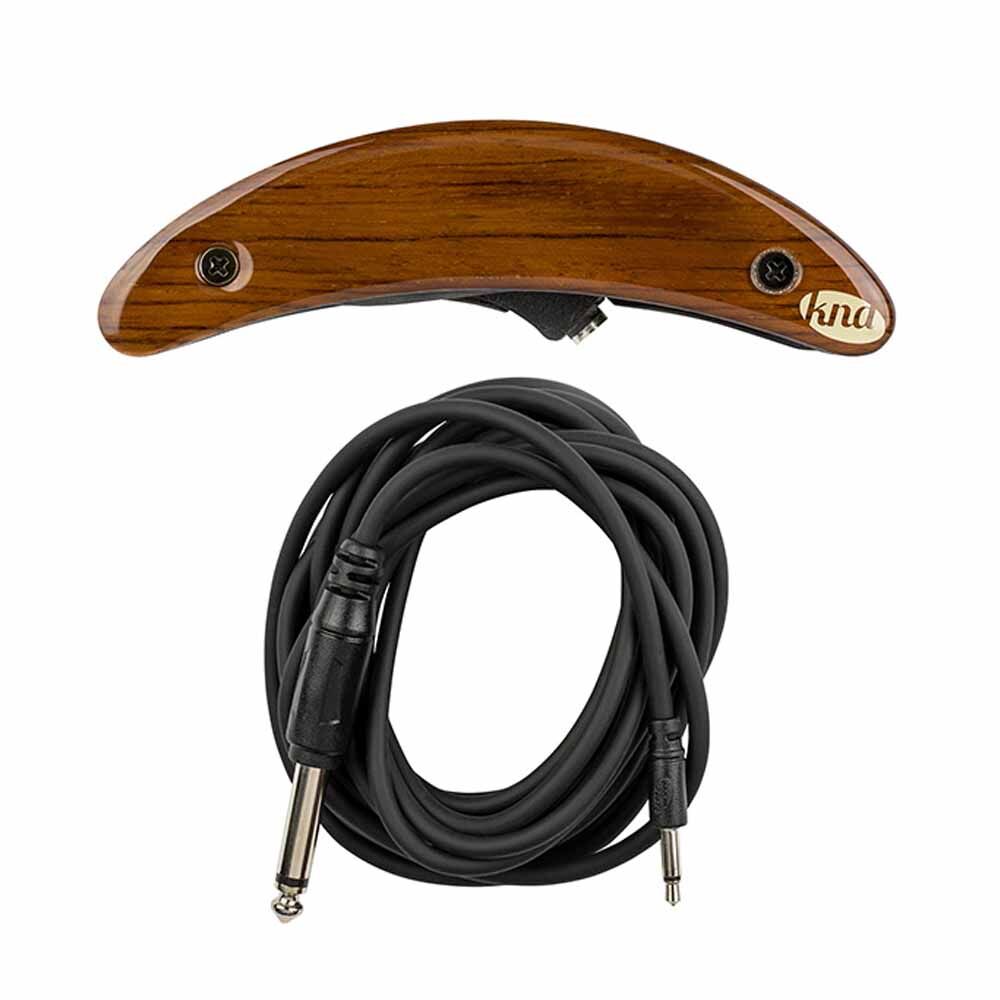

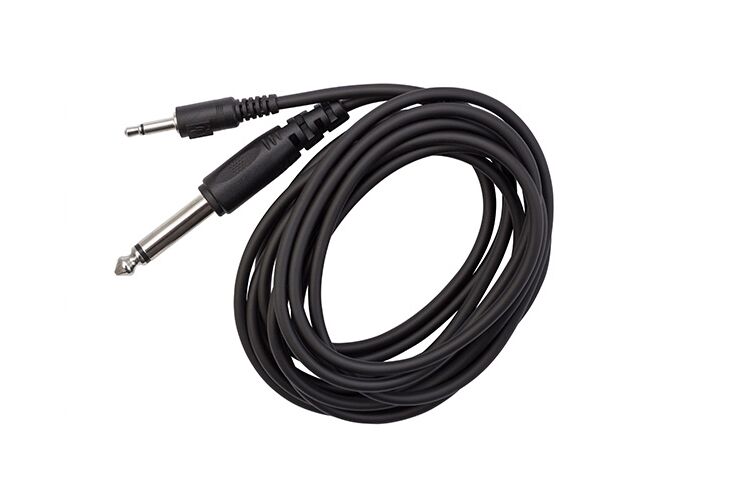

Cable included
A 1/8″ to 1/4″ cable is included for easy connection to an amplifier or mixer.
Shipping Dimensions
Weight
0.5 kg
Dimensions
140 × 60 × 100 mm
Specifications
Weight
45.35g. / 1.6oz
Wood
Mahogany
Impedance
3.60kΩ
Cable
3meter / 9′
Measurements
Specified part
Letter
Size in MM (from*)
Size in MM (to*)
Size in INCH (from*)
Size in INCH (to*)
Pickup length on top of soundboard
a
112,4
112,6
4,425
4,433
Pickup width on top of soundboard
b
33,0
34,0
1,299
1,339
Pickup height on top of soundboard (not including magnet pole pieces)
c
14,5
14,6
0,571
0,575
Active signal transfer area length
d
70,3
70,4
2,768
2,772
Maximum soundhole diameter
e
107,5
107,6
4,232
4,236
Minimum soundhole diameter
f
80,5
80,6
3,169
3,173
